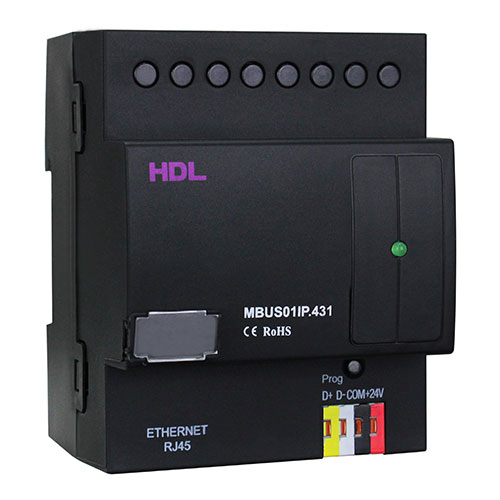

1 Port Programming Gateway
Model: HDL-MBUS01IP.431
1 Port Programming Gateway is a gateway between HDL Buspro system and Ethernet which enables bidirectional data exchange between HDL Buspro and Ethernet.
1 Port Programming Gateway is a gateway between HDL Buspro system and Ethernet which enables bidirectional data exchange between HDL Buspro and Ethernet.
■ Bidirectional data exchange between HDL Buspro and Ethernet.
■ Supports local control (default), p2p control, and remote control
■ Up to 4 devices (iPad, iPhone, Touchlife, HDL Buspro Setup Tool, etc.) connection supported for remote control
Basic Parameters
Working voltage 12~30V DC
Working current 40mA/24V DC
Communication HDL Buspro

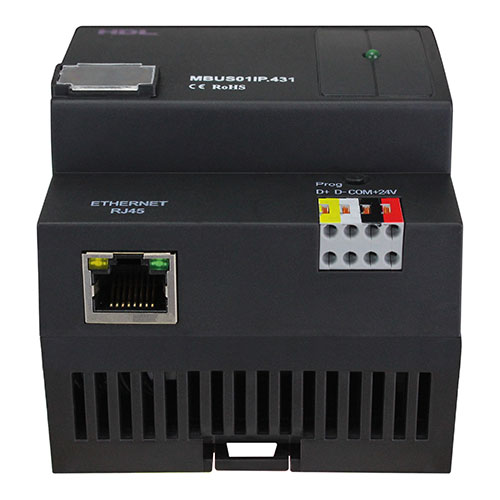

RJ45 connection RJ45-UDP/IP network interface
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 124g
Housing material Nylon

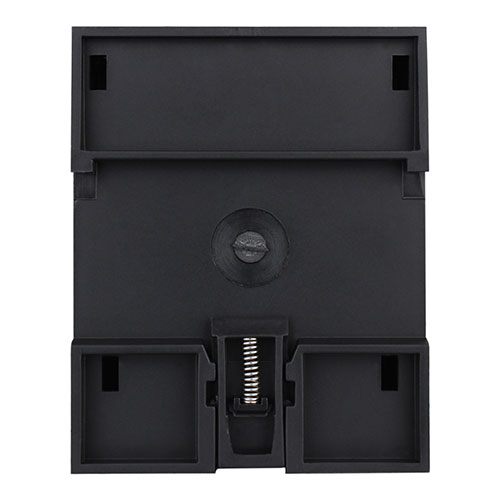

Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
