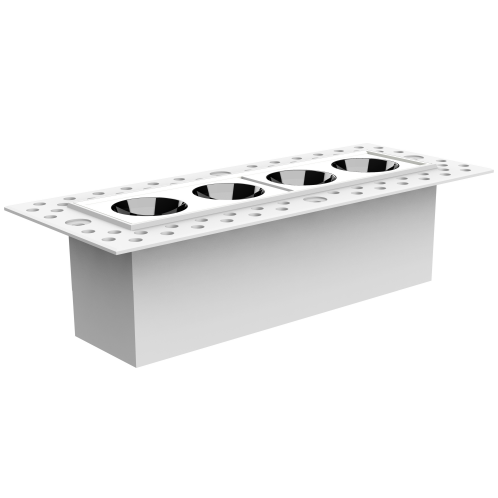

10W 4-Bulb Mini Pre-embedded Grid Light
Model: HD-YM6004
It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
• Work with DALI/0-10V/TRIAC dimming driver or built-in ON/OFF driver;
• LED 10W;
• Measurement 141mm x 47mm; height of the profile inset 89mm;
• High color rendering at an index of CRI90;
• After a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips;
• Precise beam characteristic with 15°/25°/30° beam angles;
• Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<15);
• Degree of housing protection according to DIN EN 60529 (IP20).
LED
• 2800K-6000K
• CRI>90
• 50000h@L80B10
• SDCM: 3
Optics• Beam angle: 15°/25°/30°
• UGR <15
Electric• LED Driver: None/ON-OFF driver
• LED Power: 10W
• 24V
• 300mA
Dimensions• Measurement: 141mm x 47mm
• Height: 89mm
• Height: 89mm
• Cutout: 142mm x 40mm
