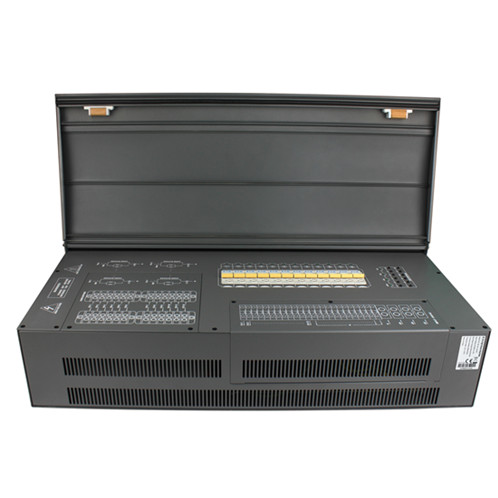

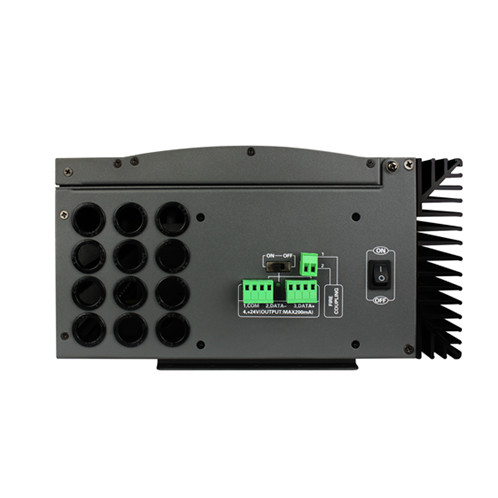

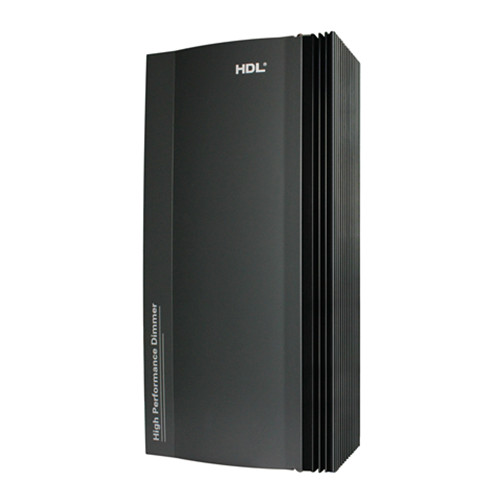

12CH 10A High Power Leading Edge Dimming Actuator
Model: HDL-MDH1210
12CH 10A High Power Leading Edge Dimming Actuator is a silicon controlled rectifier module with 12 channels output. The actuator adopts HDL Buspro communication, which has scene controller and fire protection control output. In addition, the load test function can be added to the actuator according to users' requirement. It can be used in intelligence lighting, switch control, etc.
12CH 10A High Power Leading Edge Dimming Actuator is a silicon controlled rectifier module with 12 channels output. The actuator adopts HDL Buspro communication, which has scene controller and fire protection control output. In addition, the load test function can be added to the actuator according to users' requirement. It can be used in intelligence lighting, switch control, etc.
■ 10 Bit dimming accuracy.
■ 12-channel dimming outputs.
■ LED indicator status indication.
■ Scene controller.
■ Up to 12 separate areas, each area has 99 scenes and the maximum running time is 60 minutes.
■ Up to 99 sequences, each sequence has 99 steps and the time interval is 60 minutes for each step, each sequence has 4 running modes including
“forward”, “backward”, “forward and backward” and “random”.
■ Low, high, max threshold for each channel.
■ Each channel has emergency bypass button and debugging bypass button
■ Each scene, area, sequence, channel should mark up.
■ ＊Each channel has current load detection.
■ ＊Each channel has MCB status detection.
■ ＊MCB switch trip alarm.
■ ＊Broken light alarm.
■ Communication: HDL Buspro
■ Provides 250mA current(24V DC) for HDL Buspro.
■ Fire protection switch.
■ Short circuit and overload protection, PE protection.
■ Remote programming and management.
■ Device can be restored to previous scene or specified scene, sequence.
Electrical Parameters
Input voltage AC220V±10%
Frequency 50Hz±2%
Power consumption without load Less than 10W
Output channel 12 channels
Output current in each channel Up to 10A
Total output current of channels Less than 120A
Connection Three phase and five wires
Environment Conditions
Working temperature -5℃~45℃
Working relative humidity < 90%
Storage temperature -20℃~+60℃
Storage relative humidity < 93%
Approved
CE
RoHS
Product Information
Dimensions 600×290×162(mm)
Net weight 21.8kg
Housing material Flame-retardant nylon
Installation Wall mount
Protection rating IP20
