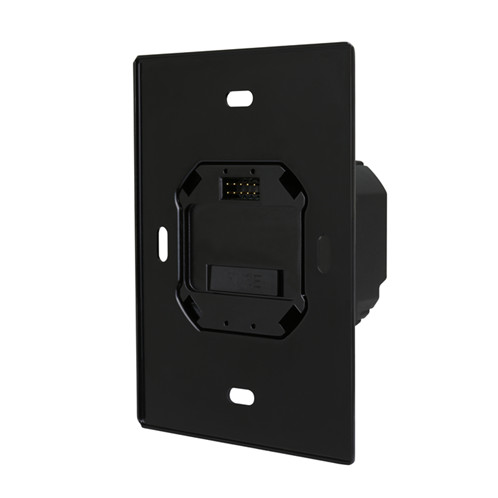

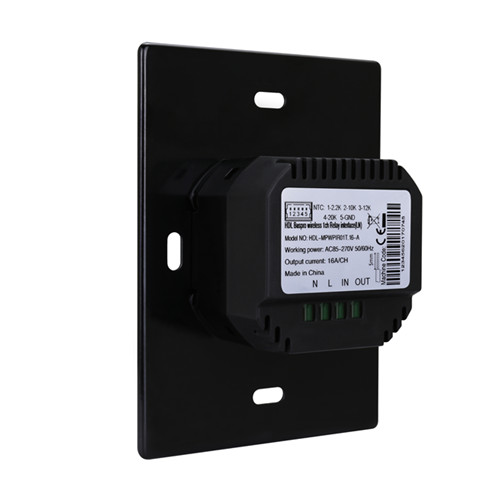

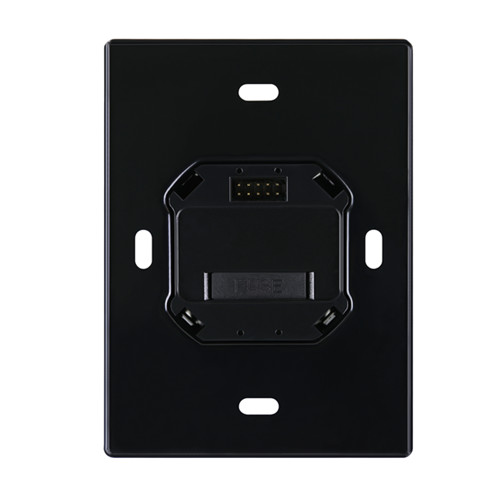

1CH Wireless Switch Power Interface with Temp. Sensor US
Model: HDL-MPWPIR01T.16-A
1CH Wireless Switch Power Interface US with Temp. Sensor is used in conjunction with the wireless panel and provides working voltage for wireless panel. With temperature sensor, the power interface has 1CH relay output and can be divided into two specifications: European standard and American standard.
1CH Wireless Switch Power Interface US with Temp. Sensor is used in conjunction with the wireless panel and provides working voltage for wireless panel. With temperature sensor, the power interface has 1CH relay output and can be divided into two specifications: European standard and American standard.
■ Provides DC 5V working voltage for wireless panels
■ 1CH relay output
■ Temperature measurement
■ Overheat protection power interface chip
Basic Parameters
Input voltage AC100-240V (50/60Hz)
Output channel 1CH relay output
Output current 16A
Mechanical life time of relay 1×107 times
Electronic life time of relay 5×104 times
Fuse 2A，aR type
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
80×110.5×39(mm)(US)
Net weight
138g(US)
Housing material Flame-retardant nylon, iron
Installation
Wall box
(The depth of the wall box is not less than 45mm.)
Protection rating
(Compliant with EN 60529) IP20
Fire and neutral wire 2.5mm2 copper cable
Load wire 2.5mm2 copper cable
