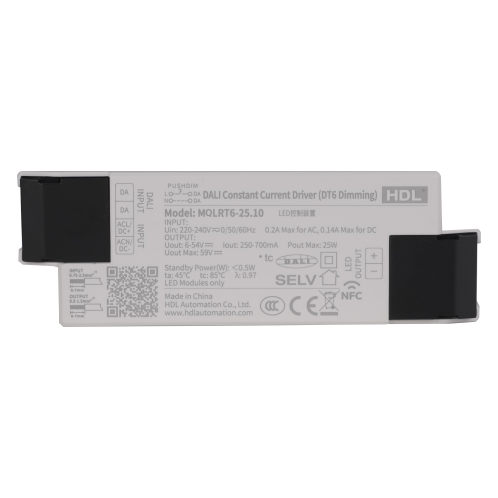

25W DALI Constant Current Driver (DT6 Dimming)
Model: MQLRT6-25.10
DALI Constant Current Driver(DT6 Dimming) is a DT6 dimming, with a voltage of 6-58V, current 250-700mA, maximum output power 25W DALI-2 drive.
DALI Constant Current Driver(DT6 Dimming) is a DT6 dimming, with a voltage of 6-58V, current 250-700mA, maximum output power 25W DALI-2 drive.
Key Functions:
1.1-channel output for switching and dimming of LED luminaires
2.Conforms to DALI-2 certification standards, DALI DT6 devices
3.Comfortable dimming effect, dimming depth as low as 0.01%, smooth depth dimming
4.Current selection via NFC configuration tool (250-700mA)
5.Current settings down to 0.1mA , current accuracy down to 1% (full load)
6.High power factor and efficiency
7.DALI address/group/scene can be set via NFC configuration tool.
8.Fault feedback mechanism, short circuit, overload, overheat protection.
9.Class II power supply, fully isolated moulded case
10.IP20 rating for indoor LED lighting applications
| Dimensions (W X H X D) | 120×41×28mm（See Figure 2 ） |
|---|---|
| Net weight | 165g±5%/PCS |
| Housing material | Nylon, PC |
| Installation | Flat surface placement, screw fixing |
| IP degree (compliant with EN 60529) | IP20 |
| Approved | RoHS、CE、CCC |
