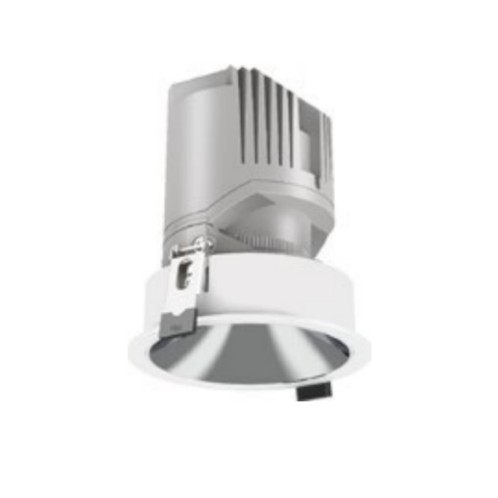

35W Recessed Spotlight
Model: HD-TH30125
It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
Made of die-cast aluminum with white powder-coating finish (RAL 9016) and white/black/chrome reflector;
Work with DALI/0-10V/TRIAC dimming driver or built-in ON/OFF driver;
LED 35W;
Measurement Ø138mm; ceiling cutout of Ø125mm with a narrow mounting trim;
High color rendering at an index of CRI90;
After a lifetime of 50000h min. 80% of the luminous flux;
Adjustable CCT light: 24°/36° beam angles; fixed CCT light: 15°/25°/30° beam angles;
Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1(UGR<13);
Degree of housing protection according to DIN EN 60529 (IP20).
LED
Adjustable color temperature 2800K-6000K
Fixed color temperature 2700K/3000K/3500K/4000K/5000K
CRI >90
L80B10 lifetime 50,000h
SDCM ≤3
Optics
CCT light beam angle 15°/24°/36°
UGR < 13
LED grid Honeycomb mesh
Power supply parameters
LED Driver None/ON-OFF driver
LED Power 35W
Rated voltage 36V
Rated current 900mA
