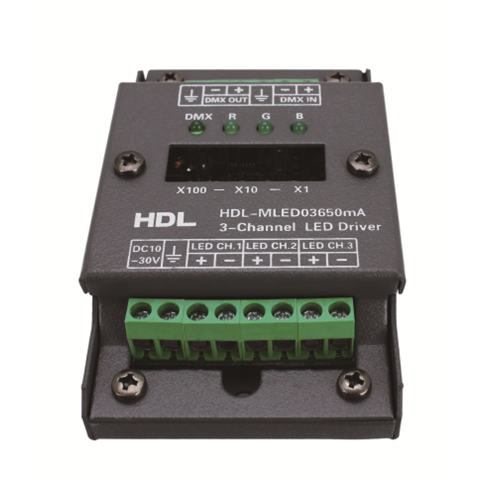

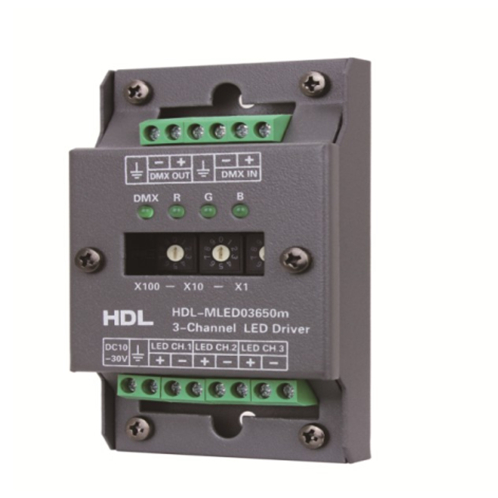

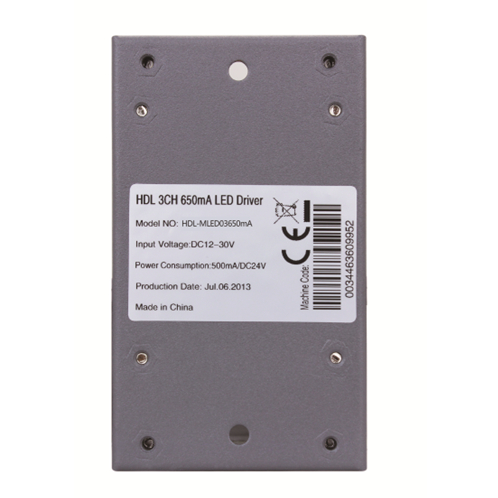

3CH 650mA LED Driver
Model: HDL-MLED03650mA
3CH 650mA LED Driver is the 3 channels LED driver with DMX512 interface. The driver has 3 constant voltage channels with PWM output for dimming, and RGB LED strip for changing color.
3CH 650mA LED Driver is the 3 channels LED driver with DMX512 interface. The driver has 3 constant voltage channels with PWM output for dimming, and RGB LED strip for changing color.
3 outputs for common anode RGB LED strip
and single LED
Power Input: DC10-30V
Control Signal: DMX512
Constant voltage with PWM output
Built-in DMX512 buffer function
Basic Parameters
Working voltage 12~30V DC
Input signal DMX512
Power consumption without load <2W
Output channel 3 channels
Max current of each channel 650mA
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 96mm×58.5mm×22.5mm
Net weight 150g
Housing material Aluminum
Protection rating (Compliant with EN 60529) IP20
