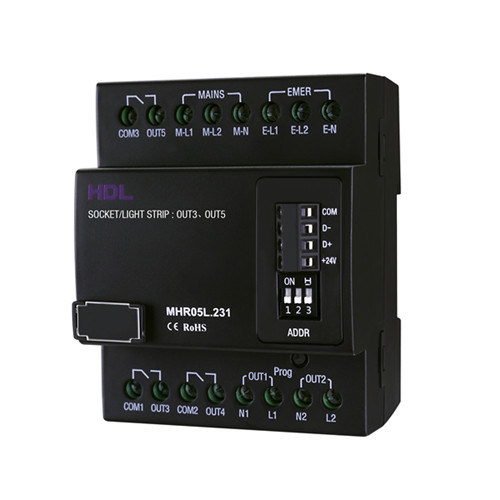

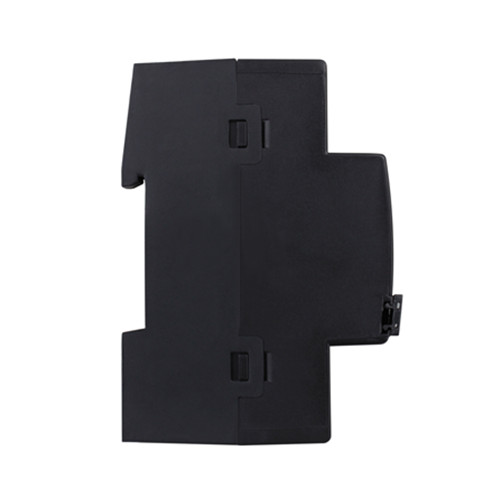

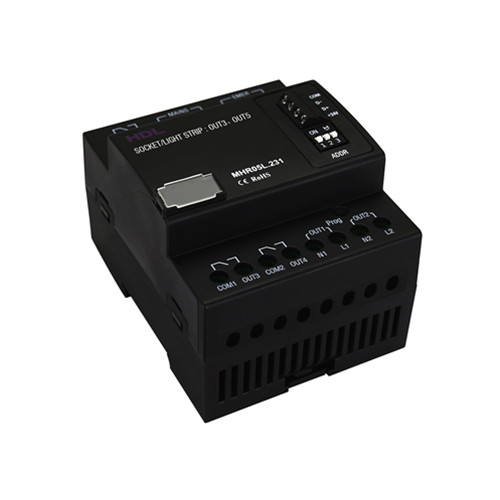

5CH High Power Switch Actuator (with Emergency Function)
Model: HDL-MHR05L.231
5CH High Power Switch Actuator (with Emergency Function) is a multifunction relay with emergency function. It has 2 emergency relay channels and 3 relay channels. The emergency relay channel supports connecting emergency power supply automatically, and providing power to emergency relay channels when the mains power is cut off. The relay channel has relay switch control function. In conjunction with HDL Hotel Room Management System, the relay module can control lights, air conditioners, curtains and plugs etc.
5CH High Power Switch Actuator (with Emergency Function) is a multifunction relay with emergency function. It has 2 emergency relay channels and 3 relay channels. The emergency relay channel supports connecting emergency power supply automatically, and providing power to emergency relay channels when the mains power is cut off. The relay channel has relay switch control function. In conjunction with HDL Hotel Room Management System, the relay module can control lights, air conditioners, curtains and plugs etc.
■ The relay module has 2 emergency relay channels and 3 relay channels.
■ Emergency relay channels: When the module works with mains, the loads can be connected to output terminals to control the relay switch. When the mains is cut off, the output terminals will directly connect to the emergency power supply to achieve the emergency lighting function.
■ The relay channels can directly connect to channels to control the switch.
■ The ID address of the dimming module can be configured easily via dial code control, it also can be freely configured via HDL Buspro Setup Tool/ (previous) HDL Hotel Room Management System.
■ Inner Buspro communication is adopted. In conjunction with HDL Hotel Room Management System, the dimming module can work in some more complicated scenes as a channel expansion module of HDL hotel host.
Basic Parameters
Working voltage 15~30V DC
Working current 75mA/24V DC
2CH/10A (AC100-240V 50/60Hz)
Relay (CH3, CH5)
Output channel
1CH/5A (AC100-240V 50/60Hz)
Relay (CH4)
Emergency channel
2CH/5A (AC220V 50Hz)
Emergency relay (CH1~2)
Electronic life time of relay >60000 (Resistance Load)
Protection
Connect a breaker in each
channel
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 418g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
