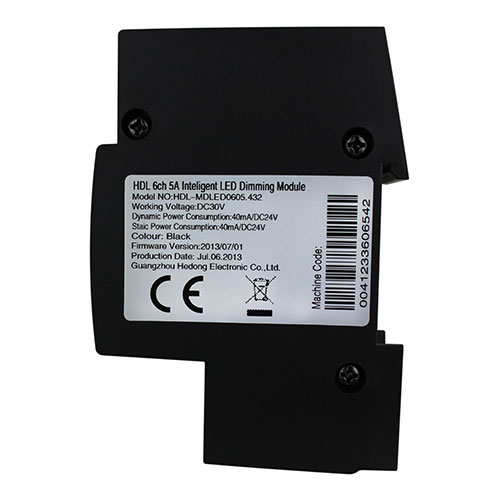

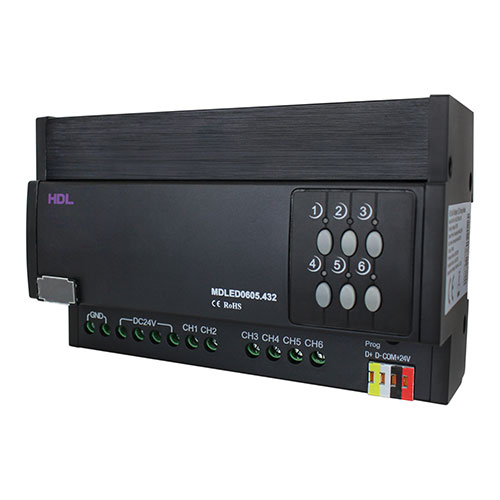

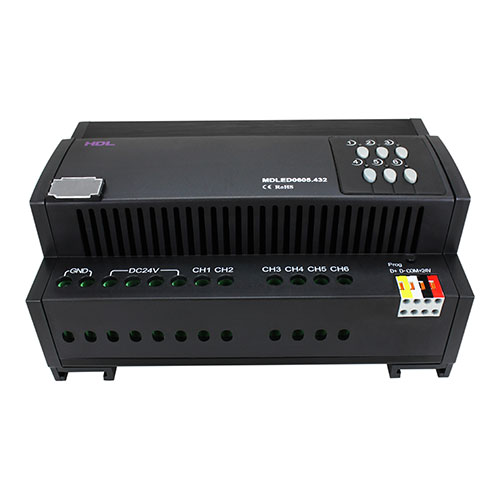

6CH 5A Intelligent LED Dimming Actuator
Model: MDLED0605.432
6CH 5A Intelligent LED Dimming Actuator can be used to control the LED light which has constant voltage. It has 6 output channels, each channel has a bypass button for manual control. Scene and sequence functions are available.
6CH 5A Intelligent LED Dimming Actuator can be used to control the LED light which has
constant voltage. It has 6 output channels, each channel has a bypass button for manual control. Scene and sequence functions are available.
■ Up to 6 separate zones, up to 12 scenes in each zone
■ Each area has 1 sequence, each sequence has 12 stepsrunning time for each step is 60 minutes, the sequence has 4 running modes: “forward”, “backward”, “forward and backward”, “random”
■ Low, high, max threshold for each channel, applicable for different load
■ Bypass button for manual control is available for each channel
■ A specific scene or the scene before power off can be chosen when the device restarts.
■ Short circuit and over current protection are available
■ Maximum current in each channel: 5A
■ PWM constant voltage output
■ Supports easy programming
■ Supports HDL Buspro online upgrading
Basic Parameters
Working voltage 15~30V DC
Working current 40mA/24V DC
LED output channel 6CH/5A
LED input voltage 12~30V DC
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 144mm×90mm×64mm
Net weight 351g
Housing material Nylon, PC

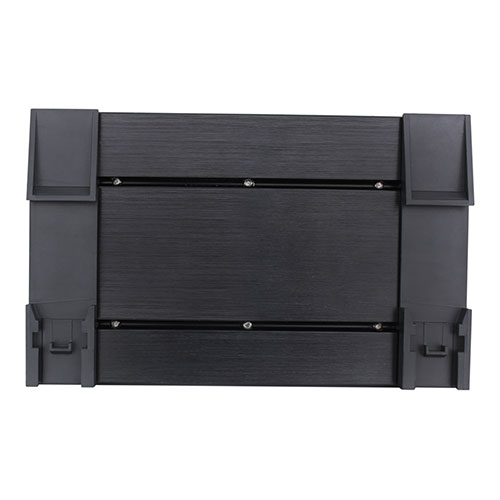

Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
