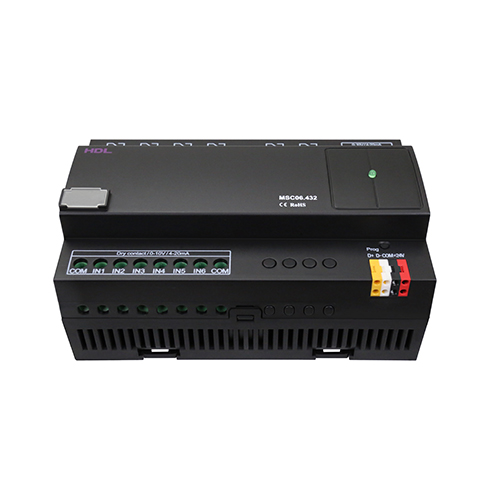

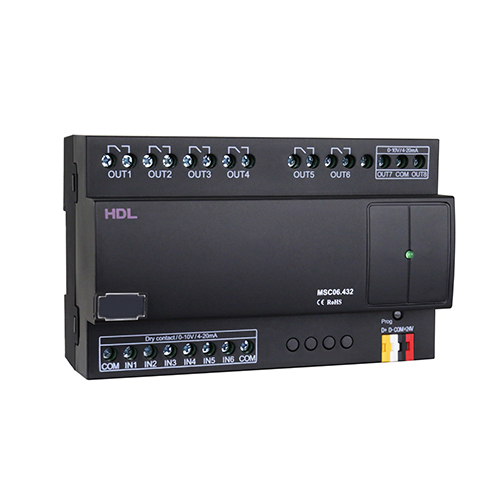

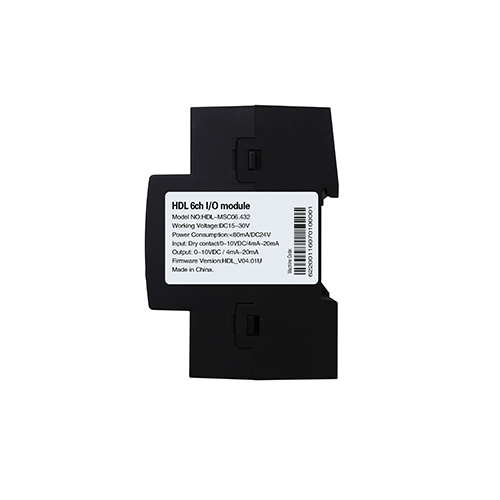

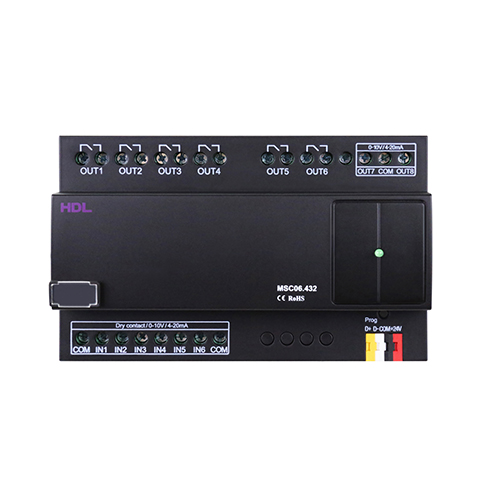

6CH Input & Output Module
Model: HDL-MSC06.432
6CH Input & Output Module has 6ch relay outputs and supports various kinds of output and input signal. The input types include: Dry contact, voltage, analogy voltage, current and analogy current. The parameters can be set via HDL Buspro Setup Tool.
6CH Input & Output Module has 6ch relay outputs and supports various kinds of output and input signal. The input types include: Dry contact, voltage, analogy voltage, current and analogy current. The parameters can be set via HDL Buspro Setup Tool.
■ Supports input types: Dry contact,Voltage(0~10V DC), Analogy Voltage(0~10V DC), Current (4~20mA), Analogy current(4~20mA).
■ Analogy function enables the module to convert the value of voltage and current into other physical quantities, including temperature, luminance, humidity, pressure, etc. in order to control targets.
■ The input channel can be set as a mechanical switch and an electronic switch.
■ Each input channel can be set to control 20 targets.
■ Output 1 to Output 6 are 10A relay outputs. Output 7 and Output 8 are 0-10V output or 4mA-20mA
output, and can be set by users according to their preference.
■ Each input and output channel can be set separately.
■ Online upgrade via HDL Buspro Setup Tool.
■ Easy programming.
Basic Parameters
Working voltage 15~30V DC
Working current 80mA/24V DC
Input voltage AC100-240V(50/60Hz)
Relay output 6CH/10A
Signal input
Dry contact, Voltage(0~10V DC), Analogy
Voltage(0~10V DC), Current (4~20mA),
Analogy current (4~20mA)
Signal output 0~10V DC / 4~20mA
Communication HDL Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 144mm×90mm×64mm
Net weight 375g
Housing material Nylon

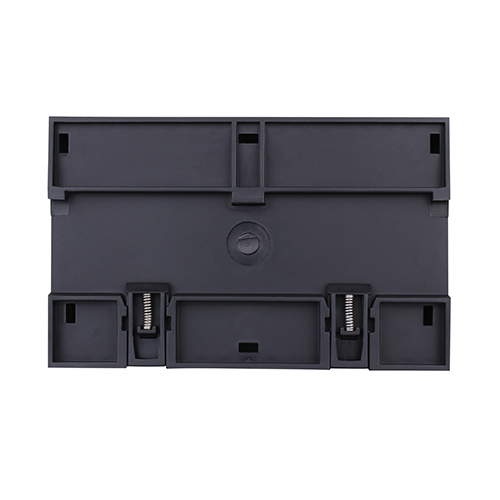

Installation 35mm DIN rail installation (See Figure 7 - 9)
Protection rating (Compliant with EN 60529) IP20
Recommended Load Type and Power
Motors 1H（1HP=746W）
Incandescent lamp load 1600W
Inductive transformer 1000W
Electronic transformer 800W
Halogen lamp 220V 1600W
Mercury vapor lamp
Uncompensated lamp 1000W
Parallel compensated lamp 800W
Fluorescent lampT5 / T8
Uncompensated lamp 1000W
Parallel compensated lamp 800W
DUO lamp 800W
Dulux lamp
Uncompensated lamp 1000W
Parallel compensated lamp 800W
