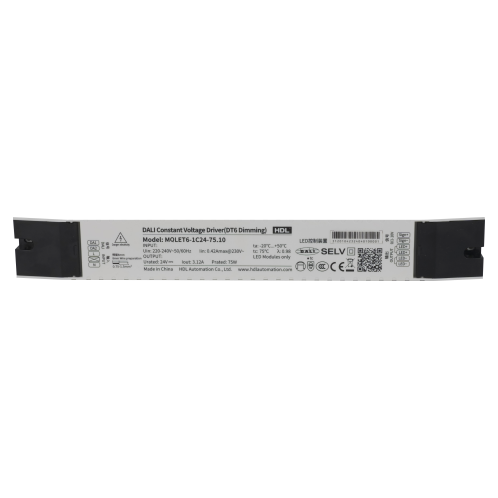

75W DALI Constant Voltage Driver (DT6 Dimming)
Model: MQLET6-1C24-75.10
DALI Constant Voltage Driver(DT6 Dimming) is a DT6 dimming DALI-2 drive, with a constant voltage output of 24V, maximum output power of 75W.
DALI Constant Voltage Driver(DT6 Dimming) is a DT6 dimming DALI-2 drive, with a constant voltage output of 24V, maximum output power of 75W.
Key Functions:
1.1-channel output, maximum output current is 3.12A
2.Can control the LED strip light switching, dimming
3.Conforms to DALI-2 certification standards, DALI DT6 devices
4.Comfortable dimming effect, smooth depth dimming
5.Fault feedback mechanism, short circuit, overload, over-voltage protection
6.IP20 rating for indoor LED lighting applications
| Dimensions (W X H X D) | 295*40*32mm（See Figure 2 ） |
|---|---|
| Net weight | 440g±5%/PCS |
| Housing material | Nylon, PC |
| Installation | Flat surface placement, screw fixing |
| IP degree (compliant with EN 60529) | IP20 |
| Approved | RoHS, CE and CCC |
