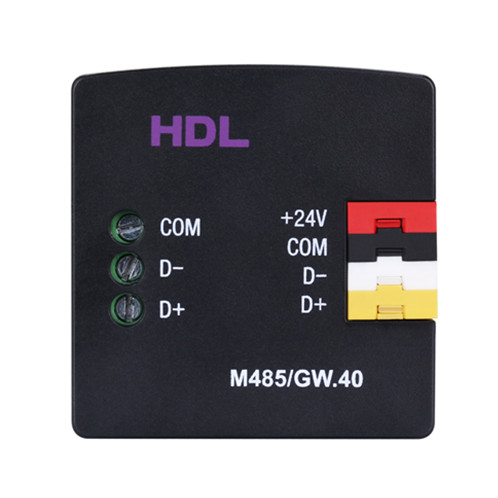

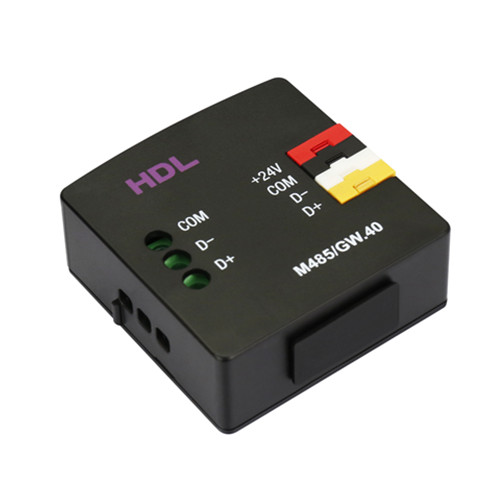

Buspro-RS485 Interface Mini
Model: HDL-M485/GW.40
Buspro-RS485 Interface Mini enables the bidirectional communication between the RS485 interface device and the Buspro device. And its small size has the advantage of increasing space utilization.
Buspro-RS485 Interface Mini enables the bidirectional communication between the RS485 interface device and the Buspro device. And its small size has the advantage of increasing space utilization.

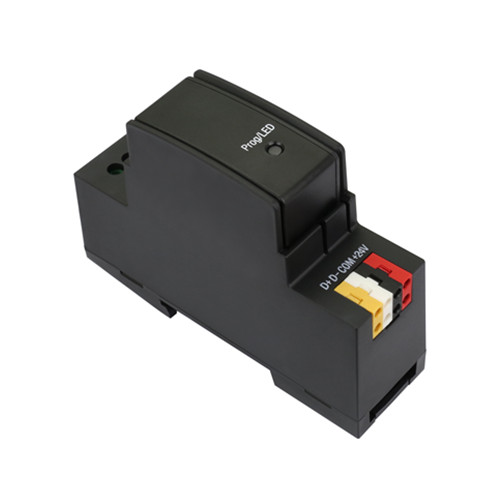

■ It is installed in the electric box by the base + module combination method, which occupies about 1.5P of the distribution box
■ Supports mutual transfer between RS485 and Buspro protocol
■ With a RS485 interface
■ Conversion modes: string, hexadecimal, and data mode
■ Supports a variety of baud rates, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
■ Up to 200 control targets supported
■ The user can customize the instruction identifier
■ HDL Buspro communication supported
■ Online update/manual update supported
Basic Parameters
Working voltage 18~36V DC
Working current 12mA/24V DC
Baud rate
1200, 2400, 4800, 9600,14400, 19200, 38400, 57600,
115200bps
Data bit 8
Stop bit 1, 2
Communication HDL Buspro/RS485
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
Buspro-RS485 Interface Mini: 45mm×46mm×18mm
Base: 90mm×64mm×27mm
Net weight
Buspro-RS485 Interface Mini: 25g
Base: 45g
Housing material
Buspro-RS485 Interface Mini: Flame retardant PC+ABS
Base: Flame retardant PA66
Installation
Wall box installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
