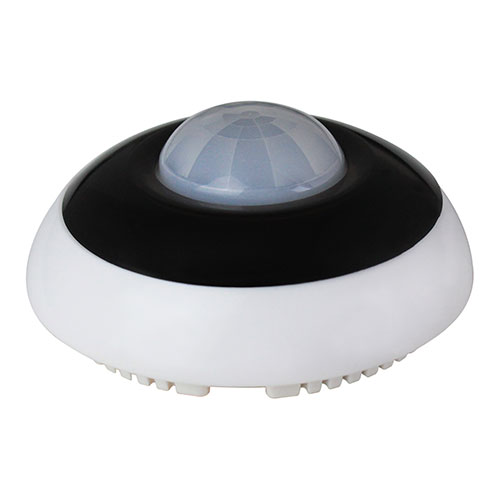

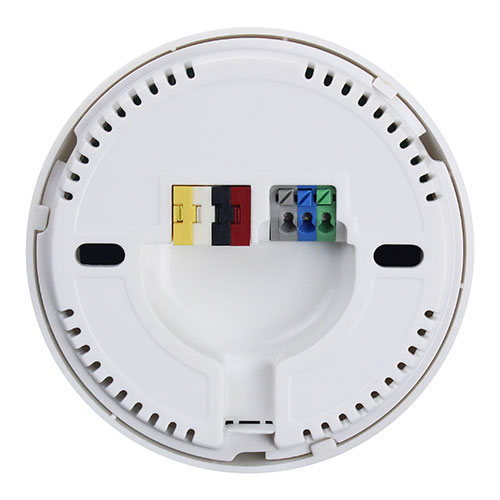

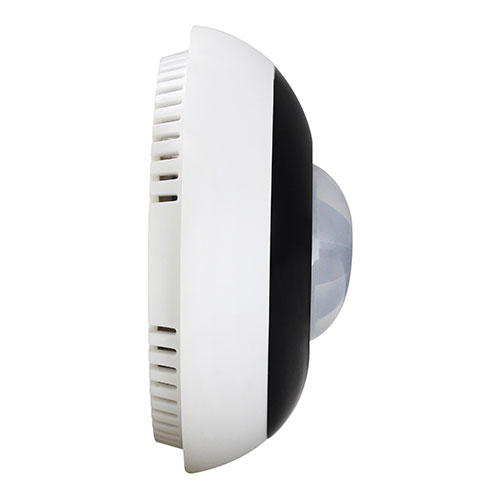

Ceiling Mount 8-in-1 Sensor
Model: HDL-MSP08M.4C
Ceiling Mount 8-in-1 Sensor includes PIR motion sensor, temperature sensor, LUX sensor, dry contact, etc., which can form different logic functions by logic block according to users’ requirements. The module supports HDL security mode and commands, and can download IR code from HDL Buspro Setup Tool and emit IR codes in order to control the targets.
Ceiling Mount 8-in-1 Sensor includes PIR motion sensor, temperature sensor, LUX sensor, dry contact, etc., which can form different logic functions by logic block according to users’ requirements. The module supports HDL security mode and commands, and can download IR code from HDL Buspro Setup Tool and emit IR codes in order to control the targets.
■ Built-in PIR sensor, temperature sensor, LUX sensor, IR emitter, dry contact and universal switch.
■ Logic inputs include temperature sensor, LUX sensor, PIR sensor, 2 dry contact inputs, 2 universal switches .
■ Two logic relations: OR, AND.
■ Adjustable PIR sensitivity from 1 to 100
■ 12 logic blocks (2 switch numbers for each). 201-240 are assigned for universal switch, which has auto-off function with the delay time of 1-3600s.
■ Logic can trigger different targets no matter it is true or false. Up to 10 targets can be triggered by each logic block.
■ IR emission function of remote control code, supports 240 infrared emission targets, corresponding to the universal switch number 1-240. When uploading infrared code, multiple infrared codes can be selected to upload at the same time.
■ Online update supported via HDL Buspro Setup Tool.
■ Constant LUX function.
Basic Parameters
Working voltage 18~30V DC
Working current 30mA/24V DC
Transmit carrier frequency 38kHz
Detection range Φ6m (Installation height: 3m)
IR emission distance 4m
Illumination sensing range 0-500lux
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions Φ84mm×37.5mm
Net weight 55.4g
Housing material ABS
Installation
Ceiling mount
Protection rating (Compliant with EN 60529) IP20
