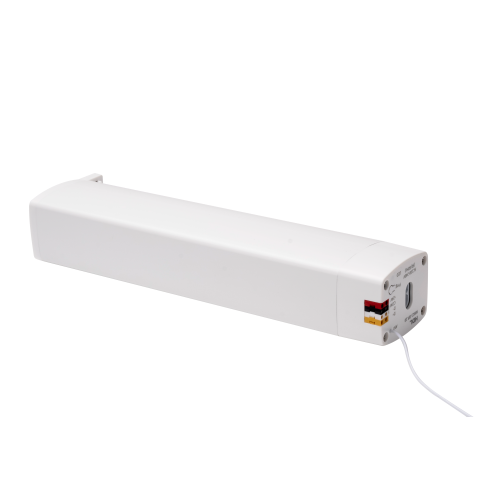

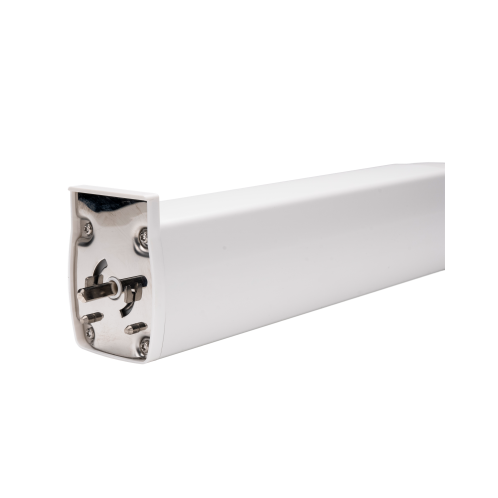

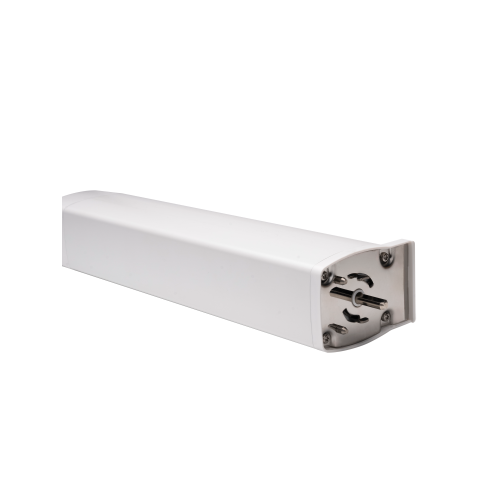

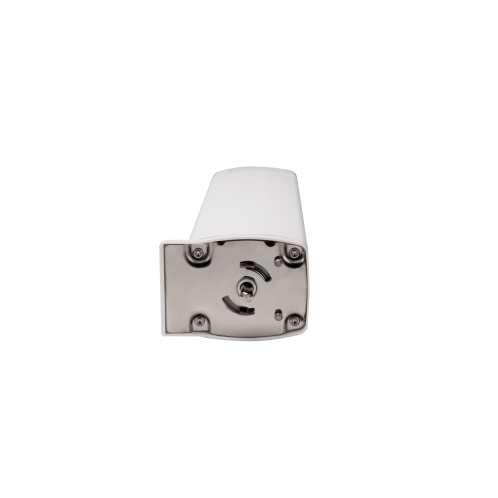

Curtain Motor
Model: MWC1-BP.10
Curtain Motor is designed to drive curtain track, such as open or close the curtain cloth. Additionally, the device is compatible with commissioning software and mobile APP. Upon proper installation and commissioning, it is able to integrate the device into smart room system, helping end users easily and conveniently remote control their curtains.
Curtain Motor is designed to drive curtain track, such as open or close the curtain cloth. Additionally, the device is compatible with commissioning software and mobile APP. Upon proper installation and commissioning, it is able to integrate the device into smart room system, helping end users easily and conveniently remote control their curtains.
• HDL Buspro communication protocol.
• Curtain control: Open / close / stop / open or close at specific percentage.
• Touch start: The device supports "Touch Start" by default. This means, when users gently pull the curtain cloth towards any direction, curtain motor will be activated to work and automatically complete the pre-set travel.
• Auto travel limit: After setting the motor travel limit, the motor will automatically complete the preset travel.
• Auto modification while detecting obstacles: When single side of curtain cloth encounters obstacles, the motor will automatically modify its travel limit.
• Auto pause while detecting obstruction: When curtain cloth encounters obstruction, the motor will automatically stop running.
• Soft start / stop: The motor slows down before it reaches the travel limit point, which is designed to effectively protect the motor and lengthen its service life, as well as reduce
motorised noise.
• When the device starts up for the first time after power off then on, it will automatically
proceed travel calibration.
• Factory setting can be restored by commissioning software or programming button.
• Through commissioning software, users can proceed advanced settings for the device,
including functional configuration, data backup, data upload or download.
• On-line / Manually update for device firmware.
• Compatible with bi-channel or multi-channel remote controllers (optional).

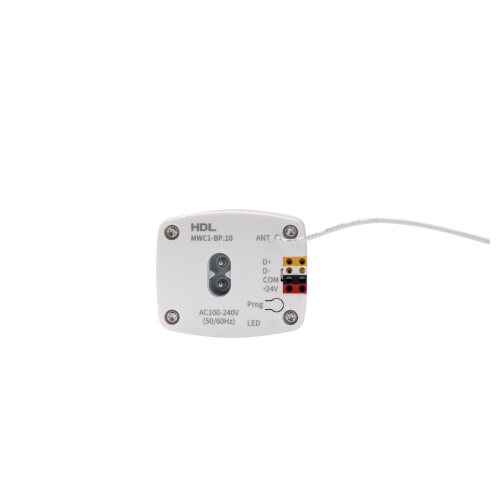

Motor input voltage: 100 - 240V AC, 50/60Hz
Motor rated consumption: 22W
BUS input voltage: 12 - 30V DC
BUS rated voltage: 24V DC
BUS rated current: 10mA/24V DC
Motor torque: 1.2 N·m
Motor rotate speed: 90rpm
Motor maximum load-bearing: 50kg
Motor sound level: ＜30dB at silent mode
Communication protocol: Buspro
Working temperature: -5℃~45℃
Working relative humidity: ≤90%RH, non-condensed
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%RH
Dimensions: 296×71×50.6mm
Net weight: 724g
Housing material PC, aluminium
Installation Guide rail (See Figure 7 & 8)
IP degree (compliant with EN 60529) IP41
Insultation grade: F
