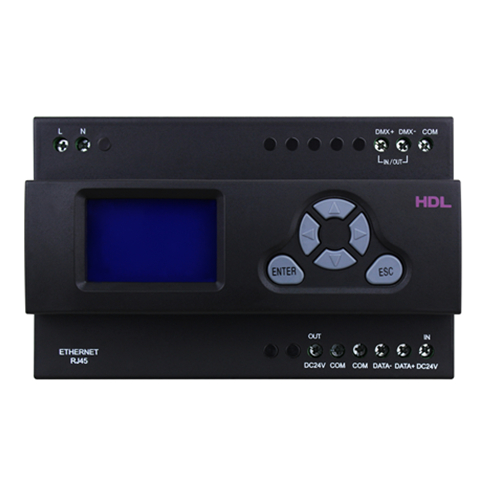

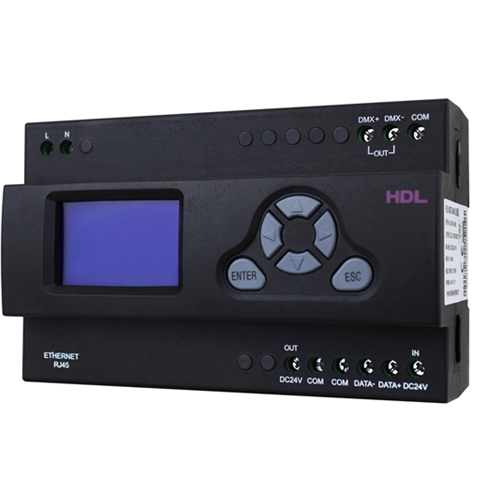

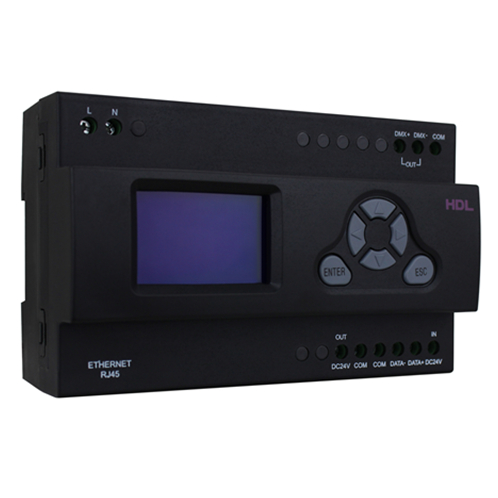

DMX Recorder
Model: HDL-MCR-DMX
DMX Recorder can record scene from another device and play it out. It can work with lighting console, DMX decoder, panel etc.
DMX Recorder can record scene from another device and play it out. It can work with lighting console,
DMX decoder, panel etc.
■ PC remote operation, download program, play program, delete program

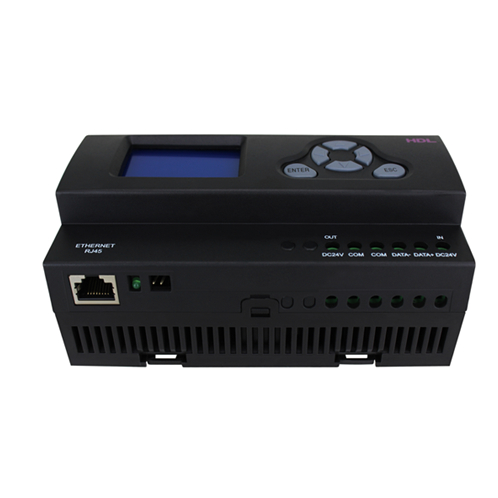

■ Communication interface: HDL Buspro, RJ45
■ Auto operate, auto record, auto play, auto delete, auto play. They have two modes: single or loop
play.
■ Panel for playing
■ Master/slave recorder function
■ Supports online upgrades
■ Others: NET-DMX, DMX512, password protection, IP setting, storage view can be selected for
DMX outputs.
Basic Parameters
Working voltage： 12~30V DC
Working current： 200mA/24V DC
Input voltage： AC100-240V (50/60Hz)
Communication： HDL Buspro
Signal type ：DMX512 (Version 1990)
Total capacity： 256Mbytes
HMI： 128x64 raster graphic LCD, 6 soft-touch buttons
Record time (up to capacity)： 10400s, about 2hours and 50mins
Program number： Max.50
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions： 144mm×90mm×64mm
Net weight ：433g
Housing material ：Nylon, PC

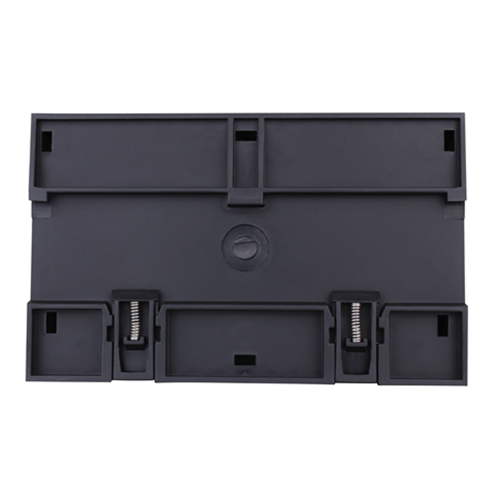

Installation ：35mm DIN rail installation
Protection rating (Compliant with EN60529) ：IP20
