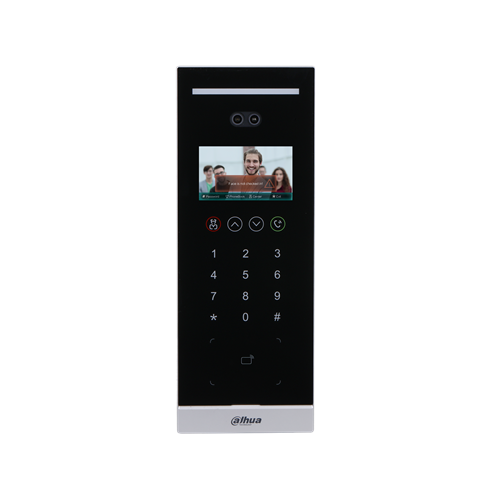

4.3 inch IPS display; screen resolution 800×480
· 2MP CMOS; true WDR
· Face-camera distance: 0.3 m–2 m; human height: 1.1 m–2.4 m (lensground distance: 1.4 m)
· Touch button; IP65
· Operating temperature: -30°C to +60°C
· Auto light illumination reduces light pollution
· Multiple unlock modes: Password unlock, IC card unlock, remote unlock and face unlock
· Support 20, 000 users, 10,000 face images, and 10, 000 cards
· Face recognition speed: 0.2 second per person
· Support liveness detection
· Support full duplex; management platform, and voice call through APP
· Support SIP server, and can manage 200 indoor monitors at most
· Support duress alarm, tamper alarm, and door sensor timeout alarm
· Various unlock status display modes protect user privacy
Function
Communication Mode Full digital
Unlock Mode Card/Remote/Password/Face unlock
Card Reading Type IC card
Motion Detection Video motion detection
Auto Snapshot Yes
Leave Videos or Text Messages Yes
Web Configuration Yes
System
Main Processor Embedded processor
Operating System Embedded Linux operating system
Button Type Touch button
Network Protocol SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
ROM 4GB
RAM 1GB
Basic
Display Screen 4.3 inch IPS screen
Resolution 800×480
Camera 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
Field of View Horizontal: 87.42°; vertical: 46.48 °; diagonal: 104.13°
Focal Length 4.0 mm
Aperture F1.6
WDR 120dB
Noise Reduction 3D noise reduction
Video Compression H.264
Video Resolution Main Stream: 720p, sub stream: 1080P
Frame Rate Main Stream (720P@25fps), sub stream (1080P@25fps) Main Stream (720P@30fps), sub stream (1080P@30fps)
Video Bit Rate 256Kbps–2048Kbps
Light Compensation Auto white light Auto IR light
Day/Night ICR auto switch
Audio Compression G.711u
Audio Input 1
Audio Output Built-in speaker
Audio Mode Full duplex communication
Audio Enhancement Echo suppression and cancellation/digital noise reduction
Audio Bit Rate 16KHz, 16Bit
