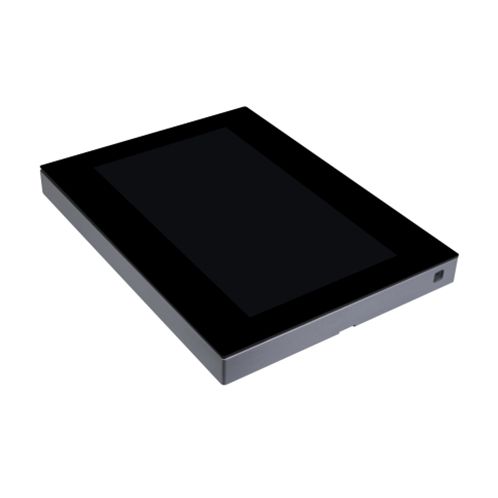

Granite 4.3″
Model: HDL-MPL43C.46
Granite 4.3" is a high-end and multi-function control panel for home automation. With 4.3-inch LCD screen and full-screen touch control, it is convenient for the users to control devices of lighting, curtain, scene, air conditioning, floor heating, music and fresh air in an intuitive way.
Granite 4.3" is a high-end and multi-function control panel for home automation. With 4.3-inch LCD screen and full-screen touch control, it is convenient for the users to control devices of lighting, curtain, scene, air conditioning, floor heating, music and fresh air in an intuitive way.
-

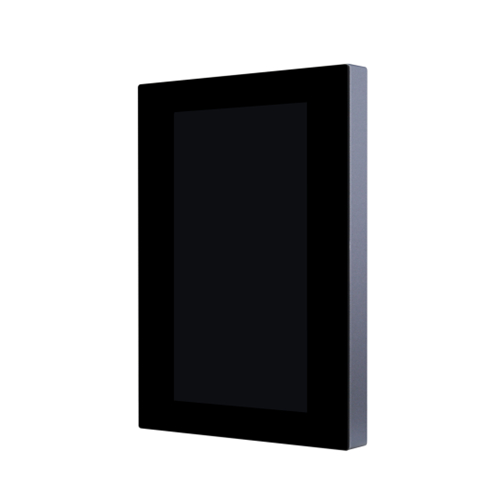

The factory default panel is portrait display and can be set to landscape display on the setting page. (when the engineer installs and debugs)
-
Built-in temperature and humidity sensor, proximity sensor
-
Adjustable LCD backlight brightness
-
LCD screen wakes up automatically
-
Supports screen lock
-
Supports sleep mode, the panel can be set to enter sleep mode if there is no operation for a certain period of time.
-

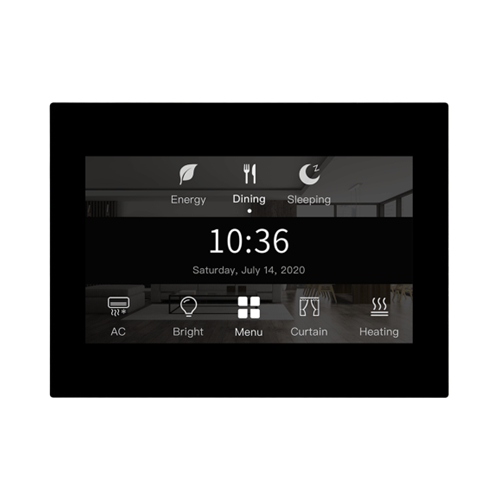

3 shortcut scene buttons, 2 function navigation buttons (vertical screen)/4 function navigation buttons
-
(horizontal screen), and 1 main menu button available in main interface (All of which support local operation and
-
configuration via HDL Buspro Setup Tool.)
-
Time and environment status display and setting
-
Dedicated pages for lighting, curtain, scene, air conditioning, floor heating, music and fresh air
Basic Parameters
Working voltage 12~30V DC
Working current 120mA/24V DC
Communication HDL Buspro
Cable diameter of Buspro terminal 0.6-0.8mm
