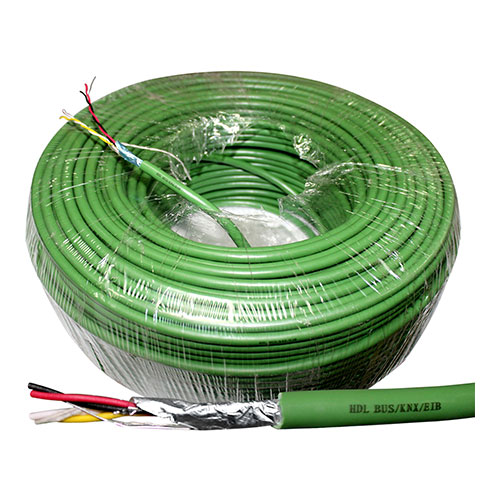

HDL-Buspro & KNX/EIB 4 core shield cable
Model: MCLXP-S.40
HDL-Buspro & KNX/EIB 4 core shield cable is the specific cable for HDL devices which use aluminum foil twisted pair. As HDL－Buspro and KNX/EIB cable, it is very convenient for wiring connection
HDL-Buspro & KNX/EIB 4 core shield cable is the specific cable for HDL devices which use aluminum foil twisted pair. As HDL－Buspro and KNX/EIB cable, it is very convenient for wiring connection
■ 4 core shield cable: red, black, white, yellow.
■ Strong signal transmission capability.
■ Strong anti-jamming capability.
Parameters:
Cable Description
4 core, Aluminum foil
shield , ground line
Copper Wire Diameter 0.75~0.85mm
Cable Diameter 7.0~8.0mm
Conductor Resistance(20℃) <35 ohm/km
Insulation Resistance(70℃) >5X106ohm/km
Impedance 120 ohm
Cable withstand Voltage AC 300V
Twisted Pair
2 Twisted pair (red and
black, white and yellow)
Twisted No. 40/m
Environmental Conditions:
Working temperature -20℃~85℃
Working relative humidity 10%~98%
Storage temperature -40℃~+100℃
Storage relative humidity 10%~98%
