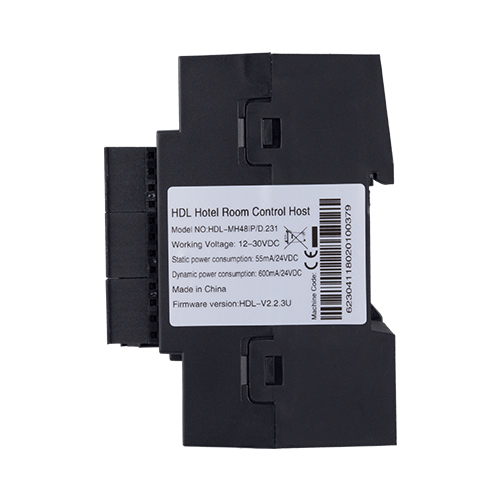

HDL Hotel Room Control Host
Model: HDL-MH48IP/D.231
Hotel Room Control Host supports hotel room host control and dry contact function. It has 48 channels. The hotel room host can control and monitor doorbell panels, curtains, lights, fans and air conditioners via the Hotel Management Software (IHMS) after parameter setting.
Hotel Room Control Host supports hotel room host control and dry contact function. It has 48 channels. The hotel room host can control and monitor doorbell panels, curtains, lights, fans and air conditioners via the Hotel Management Software (IHMS) after parameter setting.
■ The hotel host supports 48 channels, each dimmer channel has parameters for lower limit, the higher limit, the maximum limit.
■ There are 99 scenes in total, and each scene’s running time is 0-250 seconds.
■ The protection delay time of each channel is 0-60 minutes.
■ The delay turn on time of each channel is 0-250 seconds.
■ The Host can run the preset scenes or settings according to the identification of the card owner.
■ Monitors and controls air conditioners, curtains, lightings, room status, and uploads the status of air conditioners, curtains, lightings and other status to the monitor software of the server in real time.
■ Receives various panel control signal, and process the control signal of channels and modules.

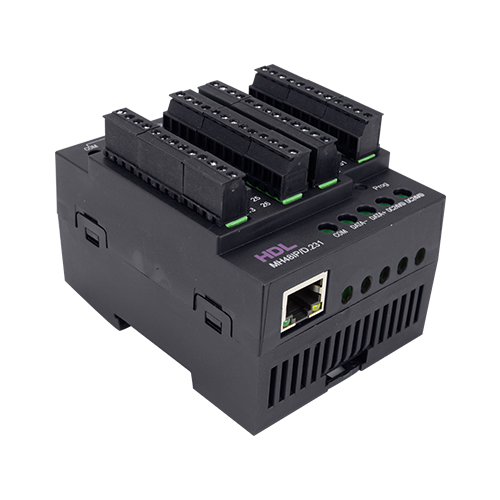

■ Network connection. The hotel room control host has a RJ45 port, which can connect to each room, reception and IHMS. Through IHMS, the modue can integrate with the third party management software to exchange information.

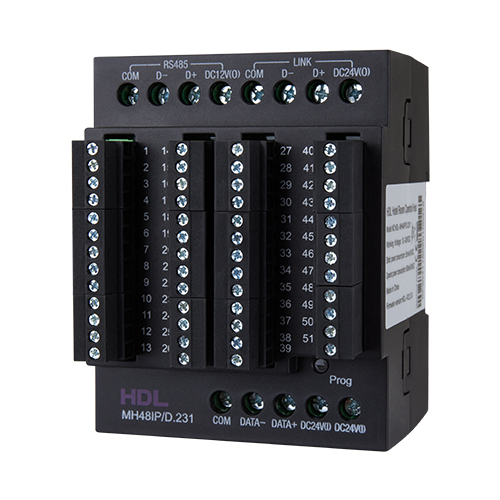

■ Supports RS485 communication devices.
■ Supports dry contact function and has 51-channel dry contacts. The channel input, channel output and control targets can be set via the IHMS.
Basic Parameters
Working voltage 20~30V DC
Working current 600mA/24V DC
RJ45 interface UDP/IP network Interface
Communication interface HDL Buspro, Inner Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×67.5mm
Net weight 130g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
