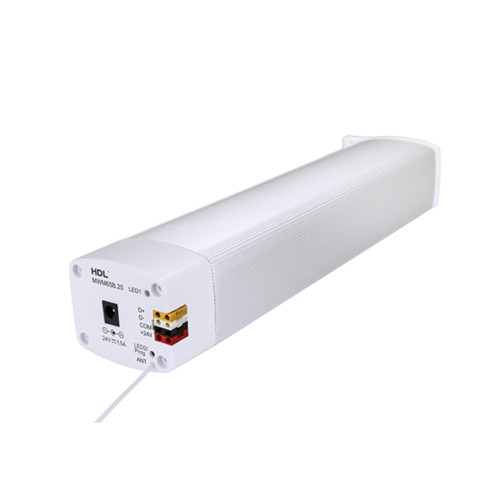

HDL Master Curtain Control Motor

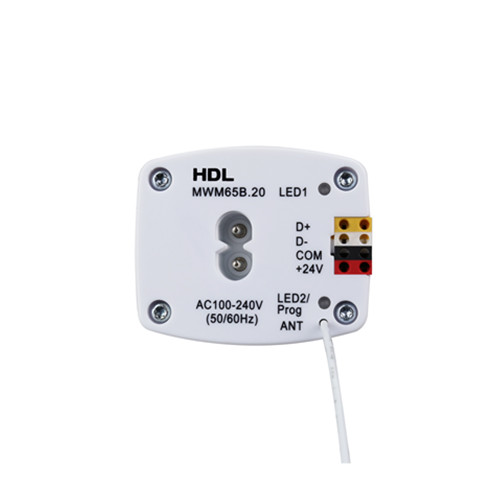

Model: HDL-MWM65B.20
With the HDL curtain motors, your curtains can run the full way to close and open while can be stopped at any position a Stop button. Or you can select a percentage to let them stop at a preset position.
With the HDL curtain motors, your curtains can run the full way to close and open while can be stopped at any position a Stop button. Or you can select a percentage to let them stop at a preset position.
l Supports Open, Stop, Close and Percentage control;
l Power supply: 24V DC;
l Supports manual control, automatic control and remote control;
l Ultra-quiet at 35dB;
l The finished rail is provided by default.
l Power supply: 24V DC;
l Supports manual control, automatic control and remote control;
l Ultra-quiet at 35dB;
l The finished rail is provided by default.
Working voltage：12-30V DC
Working current：7mA/24V DC
Motor torque：1.2N.m
Motor rotate speed：95rpm
Communication：HDL Buspro
Working current：7mA/24V DC
Motor torque：1.2N.m
Motor rotate speed：95rpm
Communication：HDL Buspro
