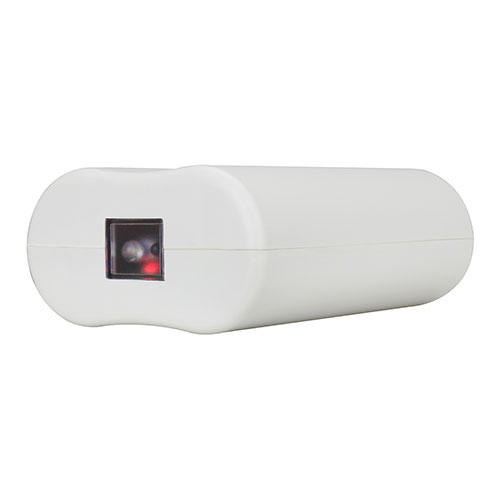

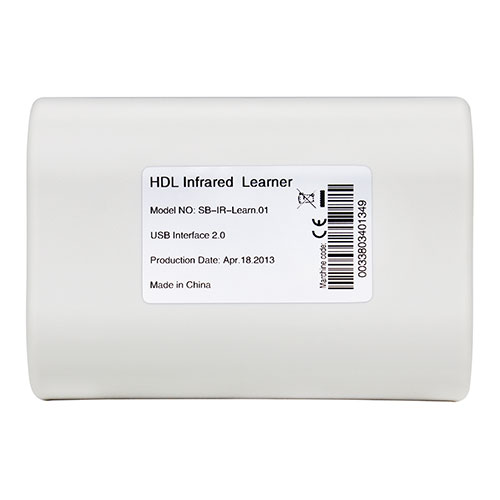

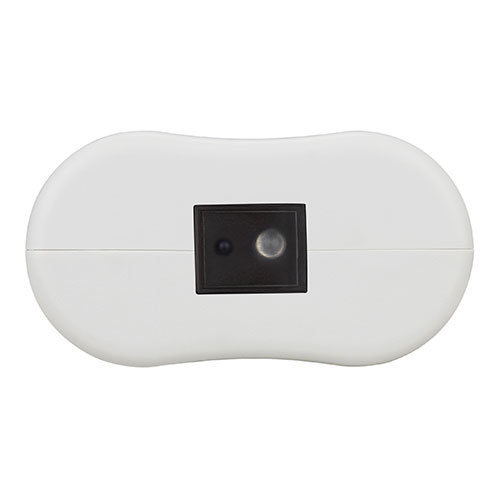

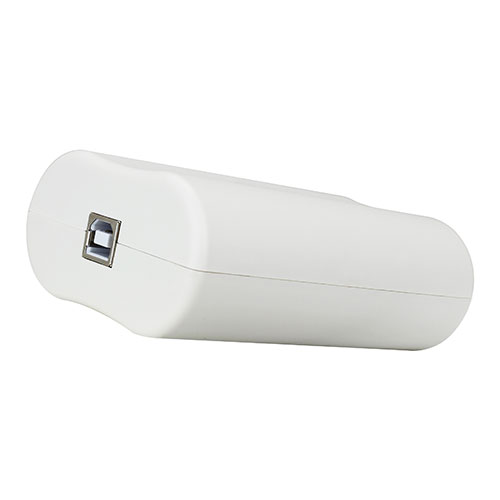

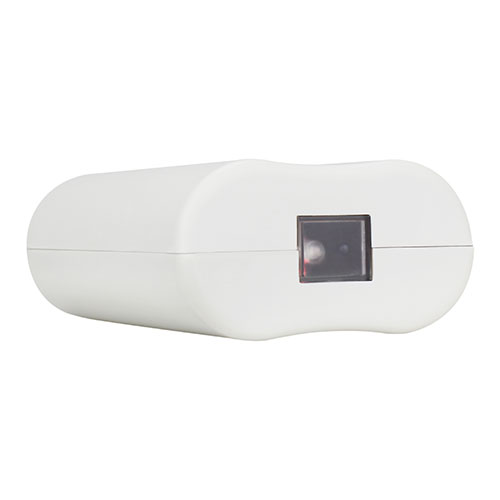

Infrared Code Learner
Model: HDL-MIR01L.01
Infrared Code Learner can learn various key commands (for example, AC, TV, DVD, satellite receiver, audio & video device, etc.). Testing mode is supported while no extra driver is needed.
Infrared Code Learner can learn various key commands (for example, AC, TV, DVD, satellite receiver, audio & video device, etc.). Testing mode is supported while no extra driver is needed.
■ USB Interface, driver free and easy to use
■ Infrared code learning
■ Infrared code sending test
■ Learning status indicator
Communication Parameters
Range of carrier wave frequency 38kHz±20%
USB 2.0, driver free
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 98mm×70mm×38mm
Net weight 180g
Housing material ABS

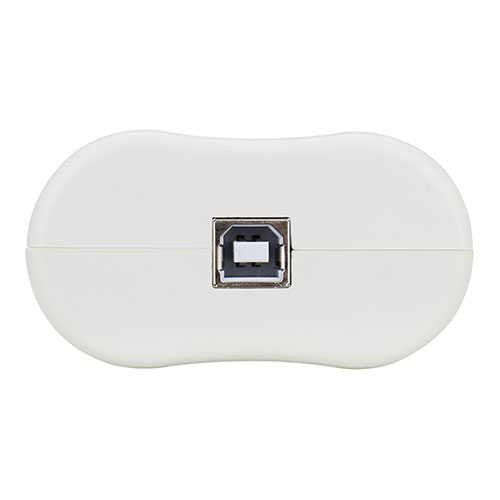

Connection interface USB 2.0 interface
Protection rating (Compliant with EN 60529) IP20
