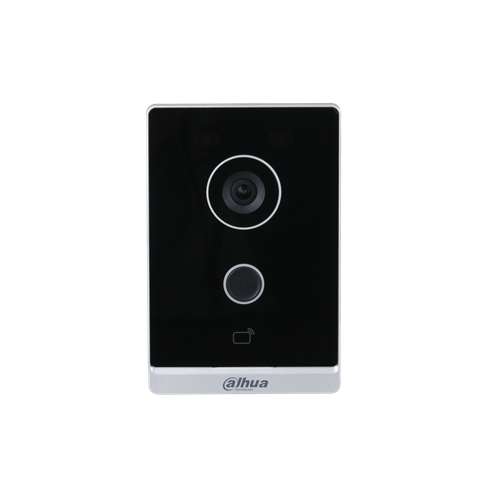

IP Villa Door Station
Model: HDL-MVDO2102T
· Thin lightweight design
· Thin lightweight design
· -30°C to +60°C (-22°F to +140°F) operating temperature
· IP65 (Silicone sealant is need. For details, see the quick start guide.)
· IR illumination and night vision
· Card unlock, app unlock, and indoor monitor unlock
· Two-way audio and voice call through app
· Card capacity: 10,000
· Tamper alarm
· Standard PoE
· Control two locks
Function
Communication Mode Full digital
Unlock Mode Card/app/indoor monitor unlock
Card Type IC card
Motion Detection Video motion detection
Auto Snapshot Auto snapshot can only be enabled on indoor monitors
Leave Videos Yes (insert an SD card into the indoor monitor)
Web Configuration Yes
System
Main Processor Embedded processor
Operating System Embedded Linux operating system
Button Type Mechanical
Interoperability ONVIF
Network Protocol SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Basic
Camera 1/2.8" 2MP CMOS high definition, low illumination/WDR/color/IR
Field of View Horizontal: 125°; vertical: 72°; diagonal: 142°
WDR 120dB
Noise Reduction 3D noise reduction
Video Compression H.264
Video Resolution Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1
Video Frame Rate PAL:25 fps; NTSC:30 fps
Video Bit Rate 256K to 4M
Light Compensation Auto IR
Day/Night ICR auto switch
Audio Compression G.711Mu; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression and cancellation/digital noise reduction
Audio Bit Rate 16KHz, 16Bit
