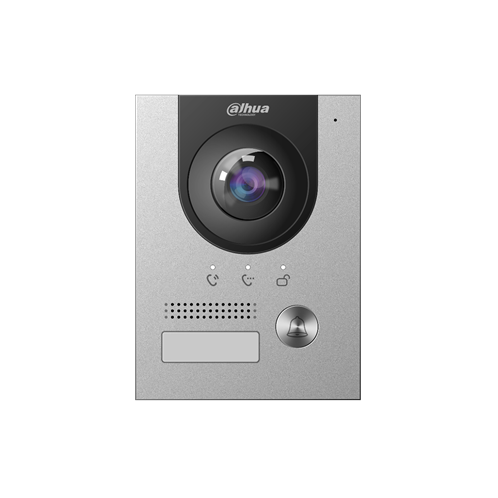

IP Villa Outdoor Station
Model: HDL-MVDO2101P
2-wire IP Villa Door Station · Anodized alumimum front panel · CMOS low illumination 2MP HD colorful 160° fisheye camera · Video intercom function · Access control function that supports two locks · Mobile phone app, talk to the visitor or unlock the door remotely on your phone · Compatible with 2-wire interface & RJ45 interface · IK07&IP65 · Support H.265 · Support surface and flush mount · PoE
2-wire IP Villa Door Station
· Anodized alumimum front panel
· CMOS low illumination 2MP HD colorful 160° fisheye
camera · Video intercom function
· Access control function that supports two locks
· Mobile phone app, talk to the visitor or unlock the door remotely
on your phone
· Compatible with 2-wire interface & RJ45
interface · IK07&IP65
· Support H.265
· Support surface and flush mount
· PoE
· Anodized alumimum front panel
· CMOS low illumination 2MP HD colorful 160° fisheye
camera · Video intercom function
· Access control function that supports two locks
· Mobile phone app, talk to the visitor or unlock the door remotely
on your phone
· Compatible with 2-wire interface & RJ45
interface · IK07&IP65
· Support H.265
· Support surface and flush mount
· PoE
General
Appearance color Silver
Power Supply Dahua 2-wire switch (max. power supply distance 50 m); DC 48V 1A; Standard PoE
Power Adapter Optional
Installation Flush/surface mount
Certifications CE; FCC; UL
Accessory Flush/surface mount
Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection IK07; IP65
Operating Temperature –30°C to +60°C (–22°F to 140°F)
Operating Humidity 10%–90% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption ≤ 12W
Net Weight 0.35 kg (0.77 lb)
Gross Weight 0.4 kg (0.88 lb)
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP;UDP
Basic
Camera 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
Field of View Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
Focal Length 1.9 mm
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.265
Video Resolution
50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate 25 fps
Video Bit Rate 256 Kbps to 4 Mbps
Light Compensation Auto IR
