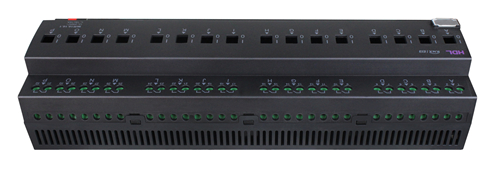

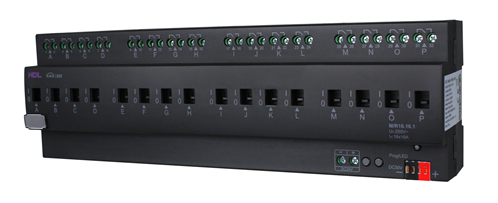

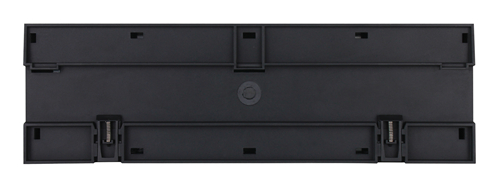

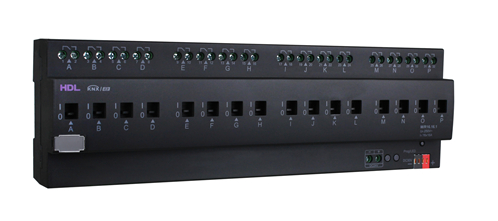

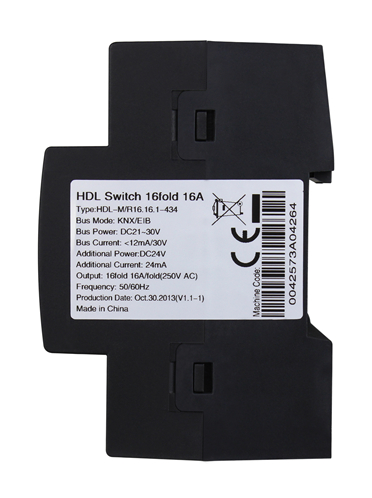

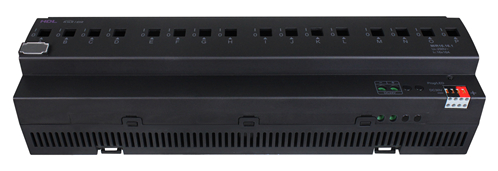

KNX 16CH 16A High Power Switch Actuator
Model: HDL-M/R16.16.1
KNX 16CH 16A High Power Switch Actuator（HDL/KNX-EIB BUS relay series products) are fully compliant with European safety standards and protocols for High-power switching KNX equipment, internal use of 50A High-current magnetic relay, zero power consumption and long life are some of the key features.
KNX 16CH 16A High Power Switch Actuator（HDL/KNX-EIB BUS relay series products) are fully compliant with European safety standards and protocols for High-power switching KNX equipment, internal use of 50A High-current magnetic relay, zero power consumption and long life are some of the key features.
■ The switch Actuators can drive for 4, 8 ,12and 16 channels loads.
■ The maximum 16 A on every output channel, also can manually operation.
■ The module functions: Statistical ON time, Status response, Status Recovery, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene Control, Threshold Function, Curtain Control and so on.
■ Logic Function: AND, OR, XOR, Gate.
■ Heating Function: PWM(1bit/1byte) control output.
Electrical Parameters
Working Voltage：21~30VDC Communication：KNX/EIB
DC current ：＜15mA
KNX terminals：KNX Bus Terminal – 0.6 – 0.8mm Diameter single-core copper cable
Rated switch voltage：250V AC/440VAC Supply
Rated switch current：16A lighting load, Max inrush 500A
Operation times：>1000000
Output Terminals：Line In, Line Out for each channel 2.5-4m㎡
Output Current：16CH/16A
capacity：<300μf<>
Environmental Conditions
Working temperature：-5℃~45℃ Working relative Humidity：Up to 90%
Storage temperature：-25℃~+55℃
Storage relative humidity：Up to 93%
Product information
Dimensions：H90mm x W288mm x D 66mm Housing material：Flame-retarded nylon
IP class：IP 20
