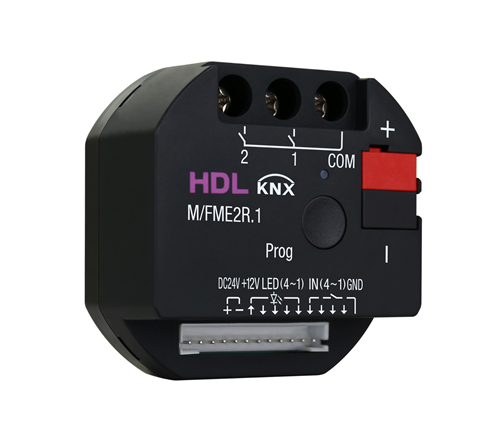

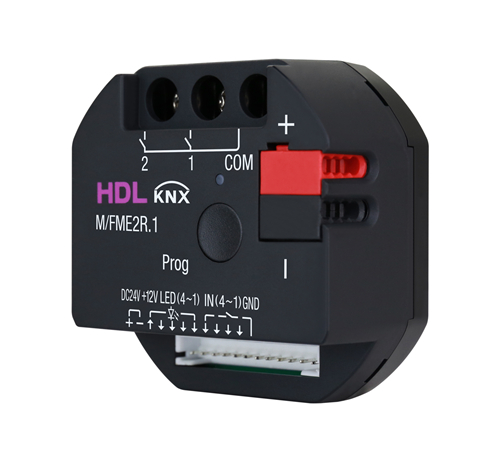

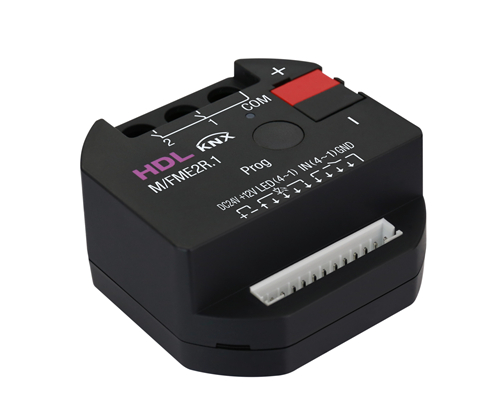

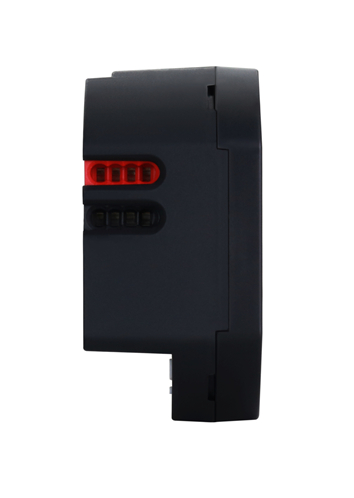

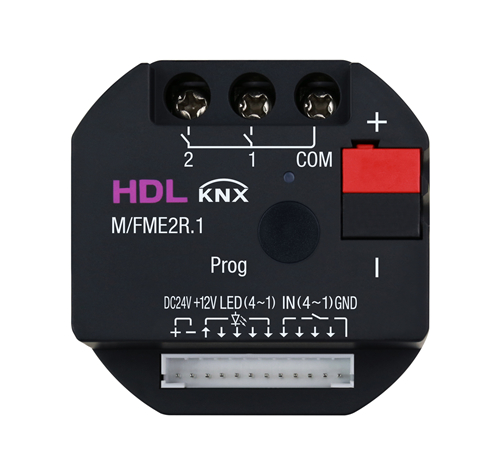

KNX 2CH 10A Flush-mounted Switching Actuator (EU)
Model: M/FME2R.1
KNX 2CH 10A Flush- mounted Switching Actuator (EU) is an actuator 2CH 10A relay control channel(s), 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting,curtain, fan, sockets, etc.
KNX 2CH 10A Flush- mounted Switching Actuator (EU) is an actuator 2CH 10A relay control channel(s), 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting,curtain, fan, sockets, etc.
■ Supports 2CH 10A relay switch control channel(s)
■ 4 dry contact input channels and 4 LED output channels
■ Programming buttons and programming indicators available
■ Short press the programming button to enter the programming mode, the red indicator is always on in the programming mode; long press the button to control all the relay channels on/off.
■ With scene control, staircase light control, delay control functions
■ Channel running time and switching times statistics.
Basic Parameters
Working voltage ：21~30V DC
Working current ：25mA/30V DC
Auxiliary voltage：20~30V DC
Auxiliary current：25mA/24V DC
Relay channel ：2CH, 10A/CH (AC100-240V, 50/60Hz)
Dry contact：4CH dry contact input
LED：4CH LED output, 12mA/CH
Communication ：KNX
Cable diameter of KNX terminal：0.6-0.8mm
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions：46.8mm×46.8mm×23.5mm
Net weight：41g
Housing material：Flame retardant PC
Installation：Wall box
Protection rating (Compliant with EN 60529) ：IP20
