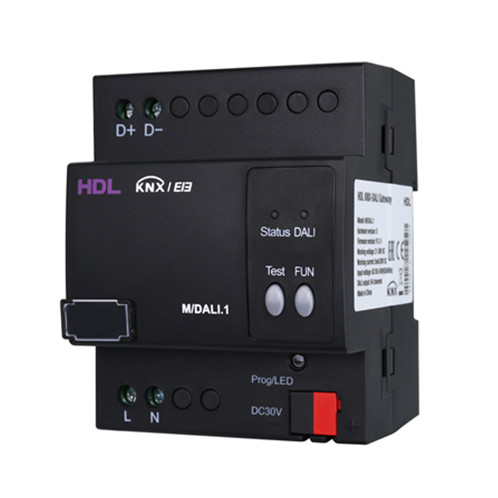

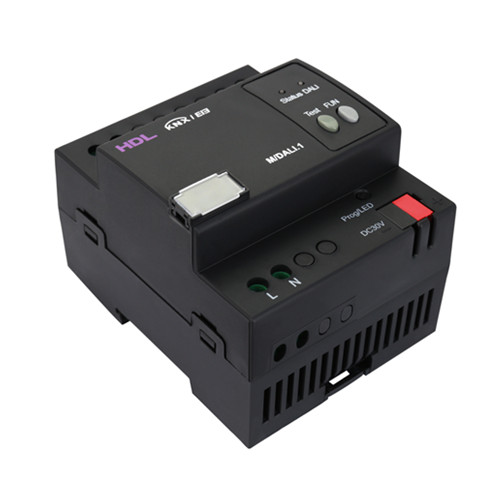

KNX DALI Gateway
Model: M/DALI.1
With built-in DALI power supply and a single DALI Bus, KNX-DALI Gateway can be connectted to up to 64 DALI devices. Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.
With built-in DALI power supply and a single DALI Bus, KNX-DALI Gateway can be connectted to up to 64 DALI devices. Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.
■ Real-time failure detection for ballasts and lamps, etc.
■ Target control: Broadcast control, Channel control, Group control, Scene control, Staircase light control, Sequence control, Emergency light control
■ Each channel and group supports Switch ON/OFF, Relative dimming, Absolute dimming, Status response function.
■ In conjunction with HDL KNX Assistant Software, DALI Gateway enables address management and assignment of DALI ballast.
■ Group scene control supported, which can be configured and managed via HDL KNX Assistant Software.
■ Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DT8 type color temperature control ballasts.
■ Online update.

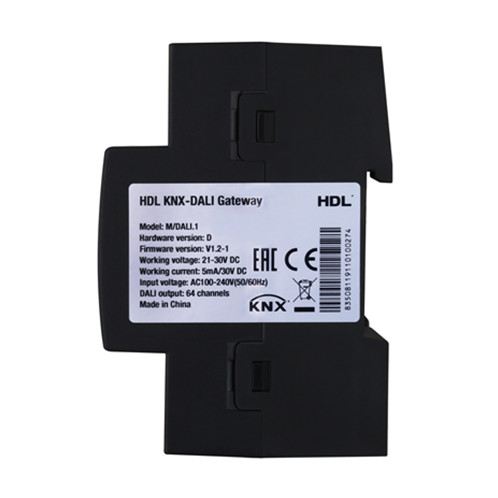

Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Input voltage AC100-240V (50/60Hz)
DALI output 64 channels
Communication KNX
Cable diameter of KNX terminal 0.6 – 0.8mm
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 241g
Housing material Nylon
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
