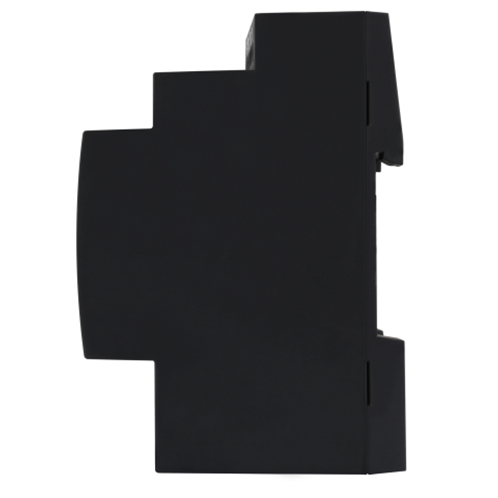

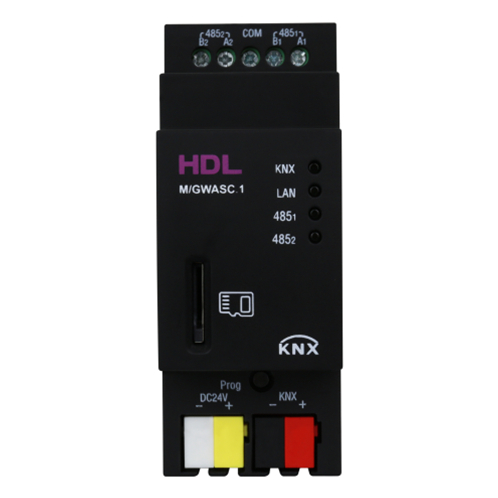

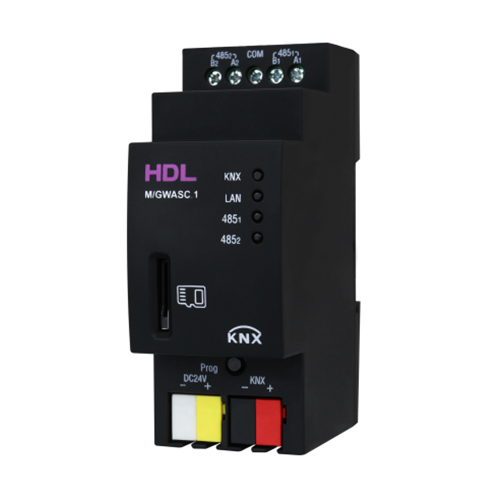

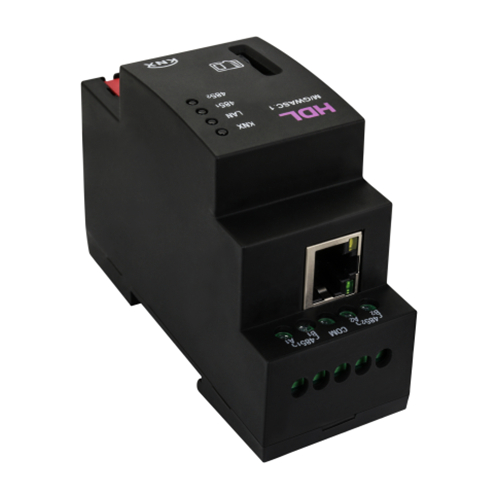

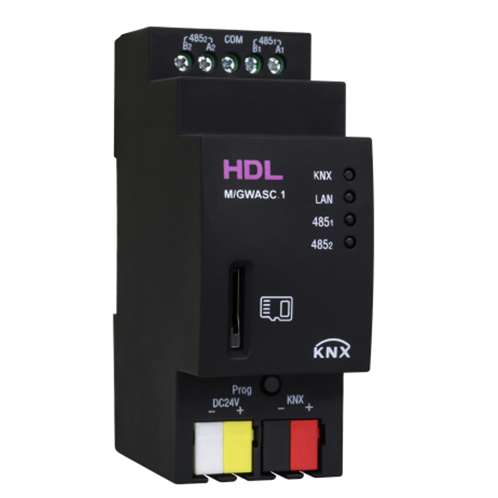

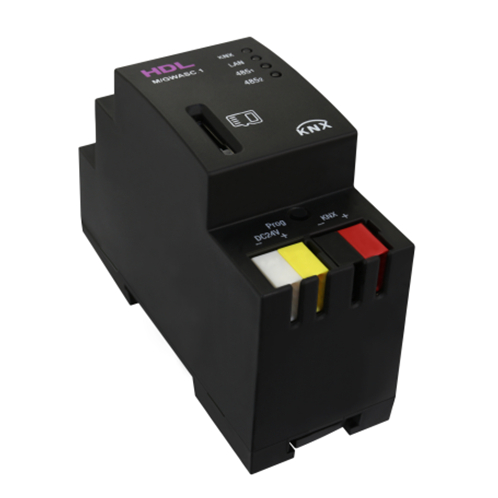

KNX Gateway
Model: M/GWASC.1
KNX Gateway is a protocol conversion gateway based on KNX Bus communication, and enables data exchange with devices of different protocols.
KNX Gateway is a protocol conversion gateway based on KNX Bus communication, and enables data exchange with devices of different protocols.
Its main functions include:
■ Device list: control feedback, update status
■ Supports scene function: add scenes, *area capture scenes, *movie (dynamic) scenes
■ Automation function
■ Security function
■ Clock: local clock, network clock, automatic synchronization of network time
■ System detection, device status reporting: device online status, offline status, device abnormal information
■ Drive management of third-party products
■ Factory reset function
■ Data backup and data recovery function
Protocol and software support:
■ Internal communication protocols include: https, tcp, udp, etc., and standard mqtt access to third-party servers also supported.
■ Support intranet communication, remote access
■ Support backup upload and download of APP, Cloud, *SD card, debugging software
■ Auxiliary support: KNX Assistance Software, KNX ETS, ON+, Cloud server
■ Online upgrade: upgrade gateway online via KNX Assistance Software, or upgrade other Bus devices through this gateway.
Note: The functions with * are not yet open for use.
Basic Parameters
Working voltage: 21~30V DC
Working current: 20mA/30V DC
Auxiliary voltage: 20~30V DC
Auxiliary current: 200mA/24V DC
Communication: KNX, RS485, Ethernet
Interface: KNX connector*1, Auxiliary power supply*1, RS485 connector*2, RJ45 port*1, SD card slot*1
Hardware information: CPU H3@1GHz, 4G RAM, 8G Flash
Cable diameter of KNX terminal: 0.6 - 0.8mm
Operation system: Linux 3.2.0 Kernel
External Environment
Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%
Specifications
Dimensions: 90×36×63.7 (mm)
Net weight: 87g
Housing material: PA66
Installation: 35mm DIN rail installation
Protection rating (Compliant with EN 60529) : IP20
