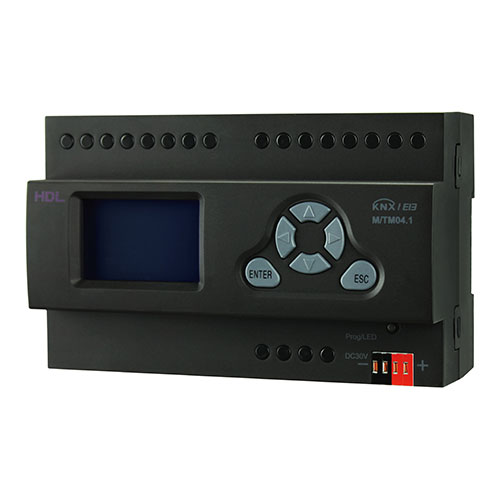

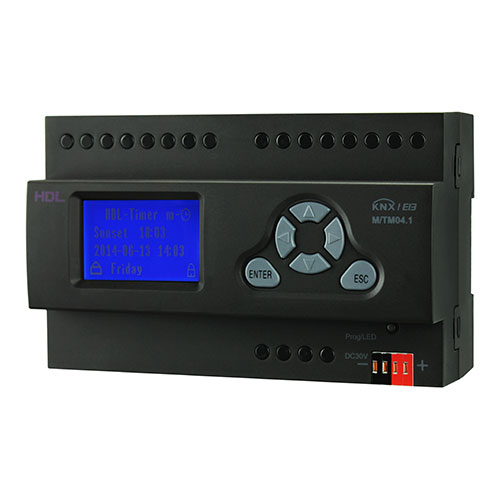

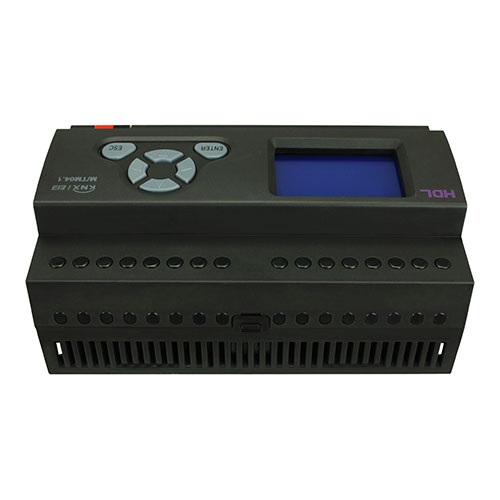

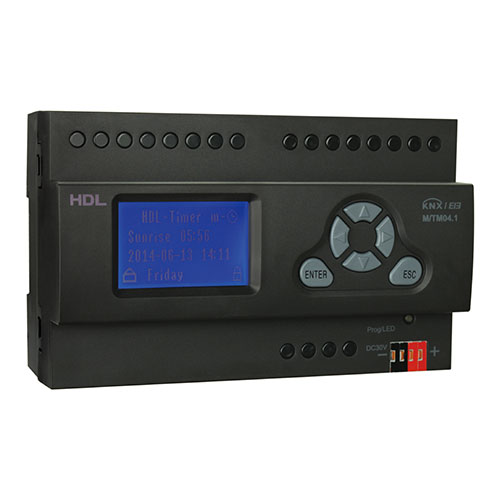

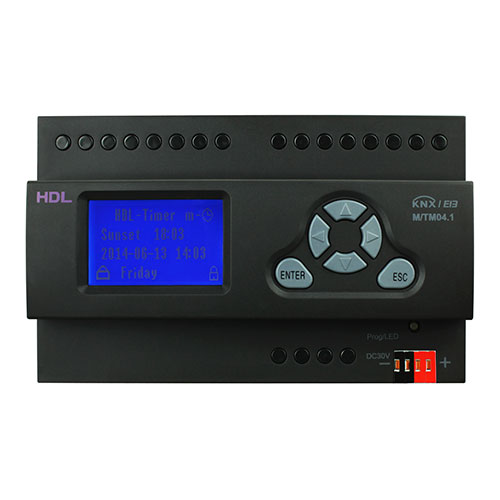

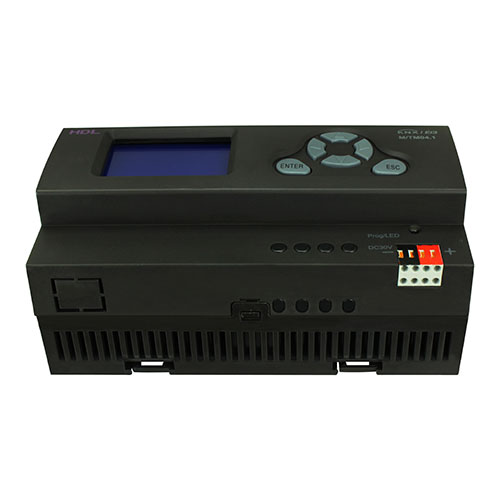

KNX Master/Slave Timer Controller
Model: M/TM04.1
With 4 independent channels and real-time clock, KNX Master/Slave Timer Controller is capable of running standard time as the master clock or slave clock. The master clock sends the clock information cyclically to KNX/EIB bus to control the schedule, while the slave clock achieves synchronization after receiving the master clock information and also realizes the control of schedule.
With 4 independent channels and real-time clock, KNX Master/Slave Timer Controller is capable of running standard time as the master clock or slave clock. The master clock sends the clock information cyclically to KNX/EIB bus to control the schedule, while the slave clock achieves synchronization after receiving the master clock information and also realizes the control of schedule.
■ Multiple routine modes: Year routine, Month routine, Week routine, Day routine, Special day
■ Control target types: Switching control, Alarm control, Curtain control, Scene control, Sequence control, Percentage control, Threshold control
■ Scene recall function
■ Working modes: Master /slave mode
Basic Parameters
Working voltage 21~30V DC
Working current 10mA/30V DC
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 144mm×90mm×64mm
Net weight 240g
Housing material Nylon
Installation

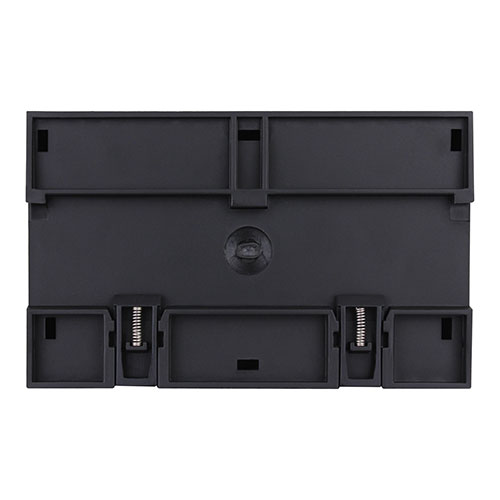

35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
