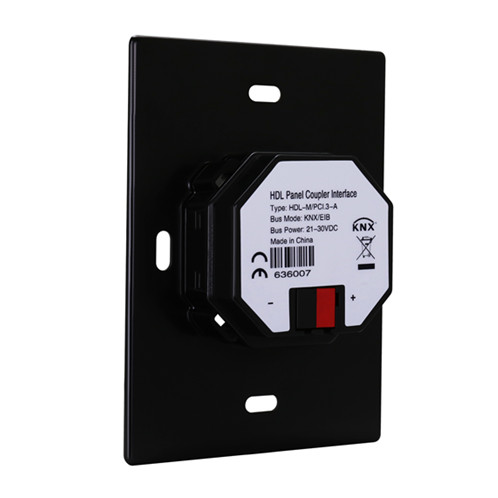

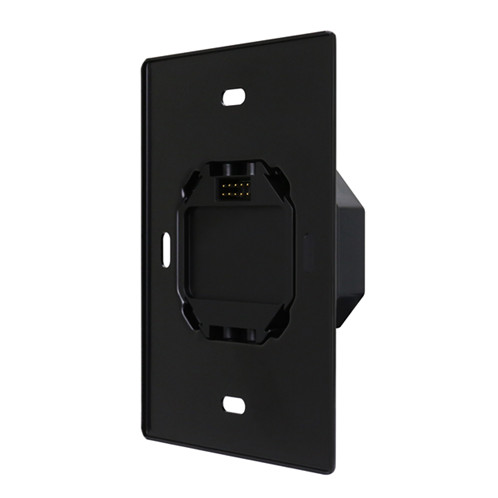

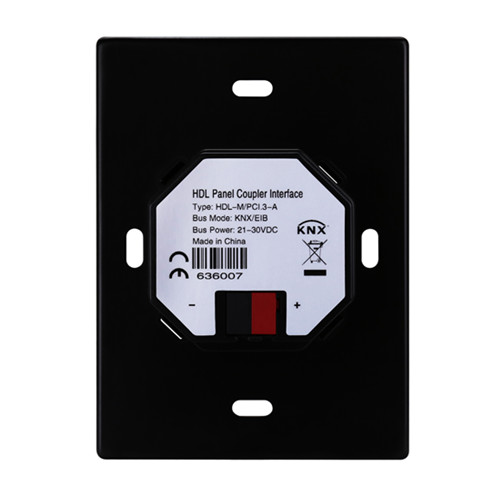

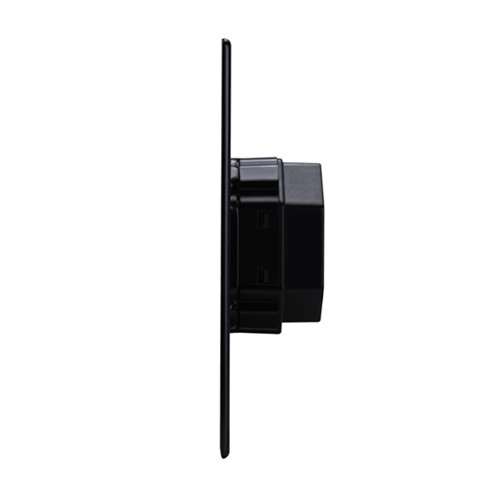

KNX Panel Power Interface US
Model: M/PCI.3-A
KNX Panel Power Interface EU(US) has two interfaces, and one interface connects to KNX/EIB, the other connects to panel or sensor, etc. The power interface provides power supply and communication signal to KNX panels or sensors.
KNX Panel Power Interface EU(US) has two interfaces, and one interface connects to KNX/EIB, the other connects to panel or sensor, etc. The power interface provides power supply and communication signal to KNX panels or sensors.
■ Provide panel or sensor with working power
■ Provide panel or sensor with communication signal
Basic Parameters
Working voltage 21~30V DC
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
EU: 80×80×28.5(mm)
US: 110.5×80×28.5(mm)
Net weight
EU: 96g
US: 121g
Housing material Flame-retardant nylon, metal
Installation Wall box (See Figure 9 - 11)
Protection rating (Compliant with EN 60529) IP20
