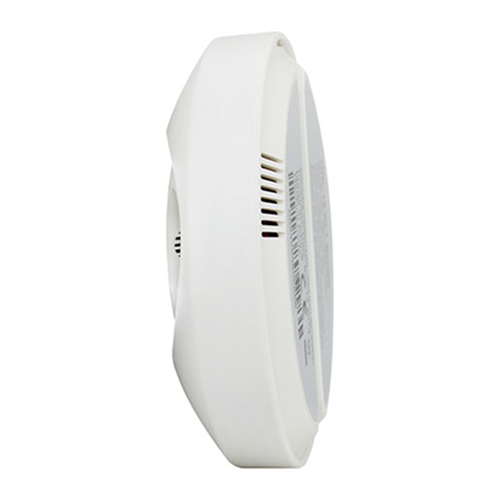

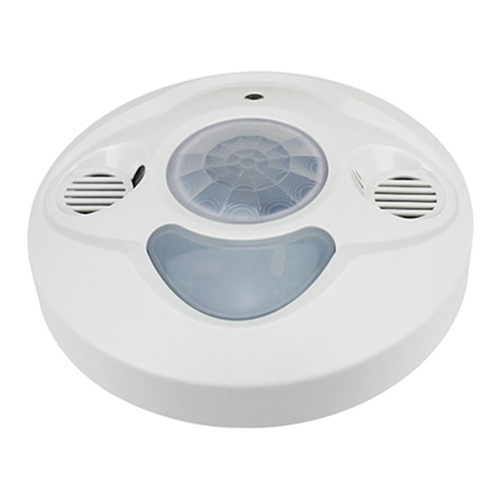

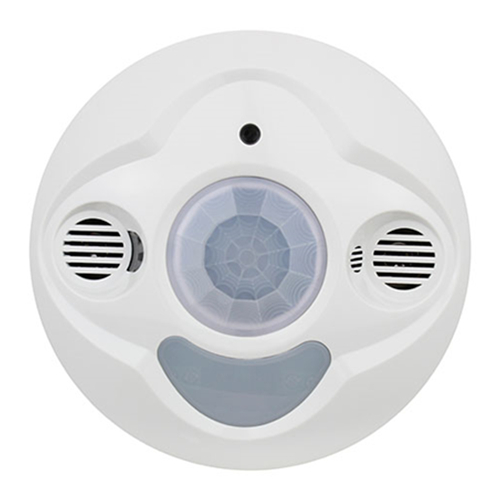

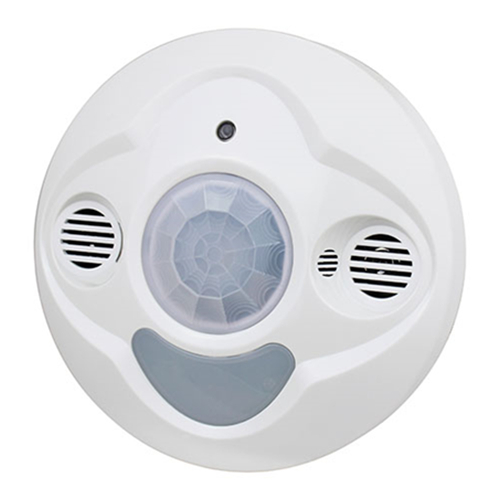

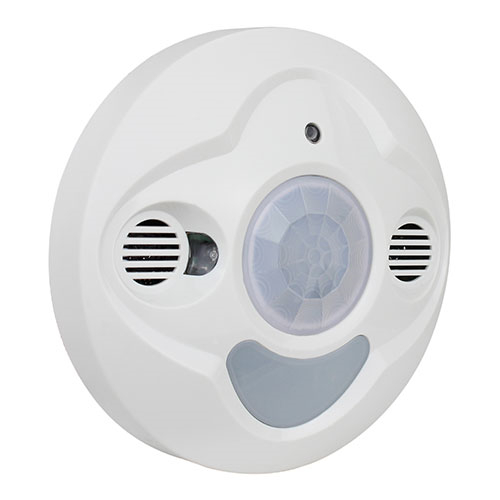

Multi-function Presence Sensor
Model: HDL-MSPIR.2C
Multi-function Presence Sensor is a 24V low-voltage multi-function presence sensor, which is with dry contact signal output. Including PIR motion sensor, ultrasonic sensor and LUX sensor, the presence sensor can be used for automatic control, and can be set by the customer to delay control devices.
Multi-function Presence Sensor is a 24V low-voltage multi-function presence sensor, which is with dry contact signal output. Including PIR motion sensor, ultrasonic sensor and LUX sensor, the presence sensor can be used for automatic control, and can be set by the customer to delay control devices.
■ 3 input conditions in total: PIR motion, ultrasonic, LUX.
■ 1-channel of 5A relay output can be used to control lights.
■ Built-in PID for constant illumination control. The setting value can be changed according to the needs of environmental setting.
■ The delay shutdown time can be set according to customer needs. The function is used to turn off the lights when the sensor does not detect movement after a specified time.
Basic Parameters
Working voltage: 18~30V DC
Working current: 90mA/24V DC
Illumination detection range: 0-35000Lux
PIR detection range in diameter: 12m (installation height: 3m)
Ultrasonic detection in diameter: 12m (installation height: 3m)
Communication: Dry contact
External Environment
Working temperature: -5°C~45°C
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%
Specifications
Dimensions: Φ110mm×35mm
Net weight: 207g
Housing material: Lens, ABS
Installation: Ceiling mount
Protection rating (Compliant with EN 60529): IP20
