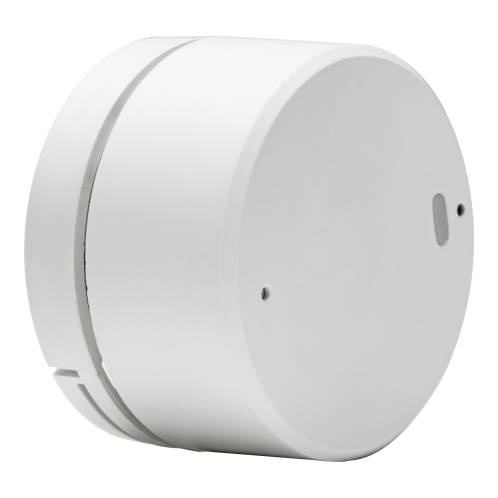

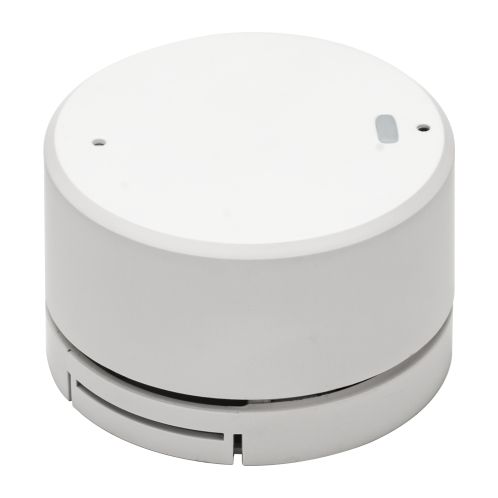

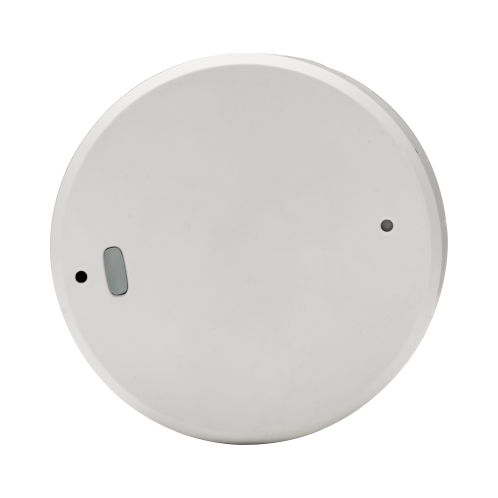

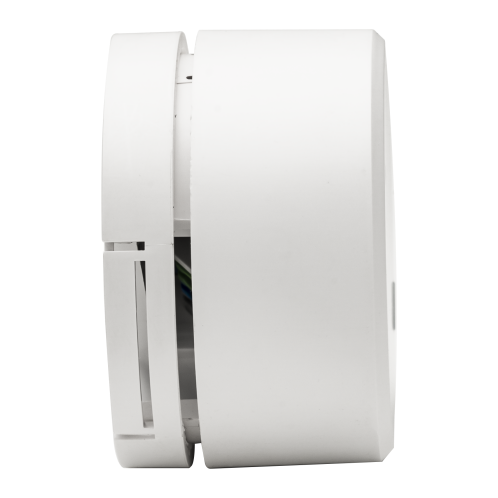

Occupancy Plus Sensor
Model: MSMW24-BP.21
Occupancy Plus Sensor adopts 24GHzmillimeter wave radar technology and advanced human detection algorithm, integrating with human presence sensor, illuminance module, temperature detection module and two dry contact input function. This product is suitable for detecting human presence, monitoring illuminance and real-time temperature, as well as switch controlling. Upon proper installation and commissioning, end users can proceed linkage control between this product and other intelligent devices through mobile phone App
Occupancy Plus Sensor adopts 24GHzmillimeter wave radar technology and advanced human detection algorithm, integrating with human presence sensor, illuminance module, temperature detection module and two dry contact input function. This product is suitable for detecting human presence, monitoring illuminance and real-time temperature, as well as switch controlling. Upon proper installation and commissioning, end users can proceed linkage control between this product and other intelligent devices through mobile phone App
1.HDL Buspro communication protocol;
2.Human presence detection: 24GHz millimeter wave radar technology, accurate and high sensitivity for detecting human motion and breath;
3.Illuminance monitoring: Real-time illuminance can be detected by the device, providing smart scene control in accordance with actual illuminance;
4.Temperature monitoring: Built-in temperature sensor for monitoring real-time environment status;
5.The device is equiped with local logic module, compatible with comprehensive logic judgment through human presence detection, temperature & illuminance monitoring, external dry contact signals, general switches, etc;
7.Master / slave logic setting: After setting, it can group and combine multiple sensors, providing wide range of detection.
Rated voltage: 24V DC
Rated current: ≤50mA/24V DC
Input voltage: 12 - 30V DC
Dry contact: 2 dry contacts
Communication protocol: Buspro
Cable diameter of Buspro terminal: 0.6 - 0.8mm
Detection frequency for micro motion: 24GHz-24.25GHz
Detection range for micro motion(in terms of diameter): Φ6m
Note: Installation height is 3m.
Sensitivity level for detection distance: The level range can be adjusted from Level 1 - 10.
Detection range for illuminance: 0-1200Lux
Detection range for temperature: -20°C~60C°
Working temperature: -5℃ ~ 45℃
Working relative humidity: ≤90%RH, non-condensed
Storage temperature: -20℃ ~ 60℃
Storage relative humidity: ≤93%RH

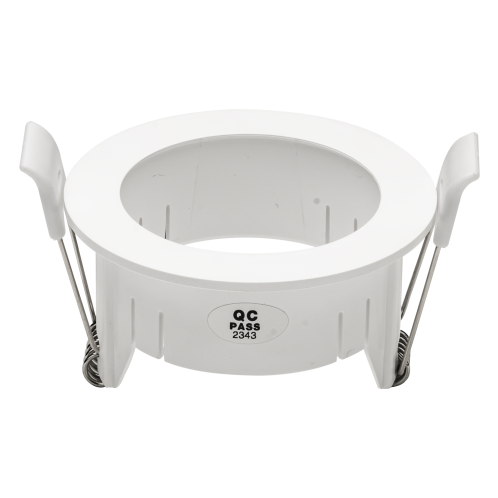

Dimensions of installation for ceiling-mounted: Φ66 x 34.6mm (Opening size: Φ60mm)
Dimensions of installation for screw-mounted: Φ48.5 x 27.5mm
Housing material: ABS
Installation height (recommended): 2.5 - 3.5m
IP degree (compliant with EN 60529): IP20
