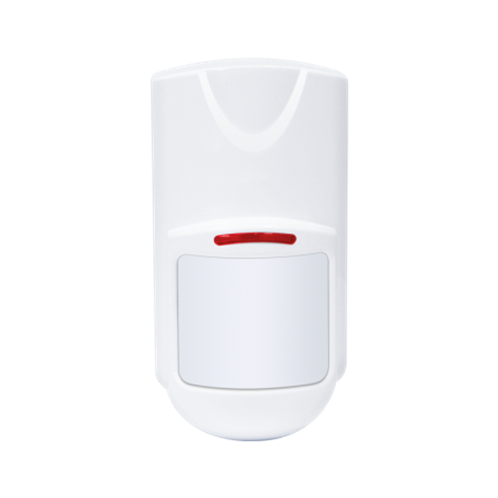

Pet Friendly TriTech PIR/Microwave Detector
Model: HM-805DTP
This TriTech (microwave + passive infrared + artificial intelligence) detector uses micro-doppler effect analysis, spectralanalysis, dynamic thresholds adjustment, artificial intelligence etc.
This TriTech (microwave + passive infrared + artificial intelligence) detector uses micro-doppler effect analysis, spectral
analysis, dynamic thresholds adjustment, artificial intelligence etc.
●Adopts Doppler Effect + Spectral Analysis + Artificial Intelligence
●Microwave X-Band Plane Antenna
●UP to 20kg Pet Immunity
●Dual-mode Temperature Compensation
●Dynamic Thresholds Adjustment Technology
●Bipolar Pulse Count Adjustable
●Anti White Light Interference, Anti RF Interference
●Fresnel Lens
●Alarm Output N.C.N.O. Optional
●Alarm Delay Time Optional (3s/30s)
●SMT Manufacture Technology, Stabler Performance
●Design Passed Patent Application
Operating Voltage: DC9-24V
Consumption Current: ≤ 30mA
Detecting Distance: 12m
Detecting Angle: 90 degrees
Detecting Speed: . 0 3m/ ~3m/s
Self-Testing Time: 60s
Alarm Delay Time: 3s/30s optional
Alarm Indication: Red LED
Sensor: Double element pyroelectrie infrared sensor
Microwave Antenna: Plane antenna with high frequency
oscillator GaAs :FET
Microwave Frequency : 10.525GHz
Operating Temperature: -10°C ~ +50°C
Environment Humidity: Max 95% RH (no congelation)
Installation Mode: Wall or corner mount
