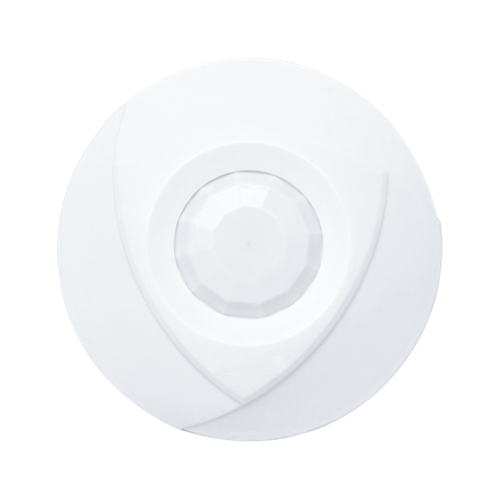

PIR Detector
Model: HM-803W
The product is a Ceiling-mounted passive infrared detector with high stability. It adopts advanced signal processing technology which provides superhigh detection ability and anti-false alarm ability, and MCU processing ensuring the reliability from design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements， it will send alarm signal to the connected alarm host. It suits for safety protection in residential houses， villas， factories, shopping malls, warehouses and office buildings etc.
The product is a Ceiling-mounted passive infrared detector with high stability. It adopts advanced signal processing technology which provides superhigh detection ability and anti-false alarm ability, and MCU processing ensuring the reliability from design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements， it will send alarm signal to the connected alarm host. It suits for safety protection in residential houses， villas， factories, shopping malls, warehouses and office buildings etc.
●MCU control, resist false alarm efficiently
●Double temperature compensation
●Pulse count adjustment
●Anti white light interference
●Anti RF interference (20V/m-1GHz)
●Fresnel lens
●Wall/ceiling installation
●Alarm output N.C. or N.O.
●Alarm time optional (3s or 30s)
●Intelligent floating thresholds technology
●Patent appearance design
●SMT manufacture technology with high stability
Operation voltage: DC 9-16V
Current consumption:≤18mA(DC 12V)
Detecting distance:φ6mat 3. 6m of ceiling installation
Detecting speed: 0.3m/s-3m/s
Detecting an: 360°
Self-testing time: 60s
Alarm time: 3s/30s optional
Alarm indication: Red LED
Sensor: Double element pyroelectrie infrared sensor
Operating temperature: -10°C~ +50C
Environment humidity:≤95% RH(no congelation)
Anti RF interference: 10MHz-1GHz 20v/m
Installation model : Ceiling mounted
Installation height: 2 .5m-6m
Alarm output: N.C.or N.O. (DC28V 100mA)
Tamper output: N. C. (DC28V 100mA)
Execute criterion: GB 10408.1- 2000;GB10408.5- 2000
Outline Size:中1 00* 36mm
