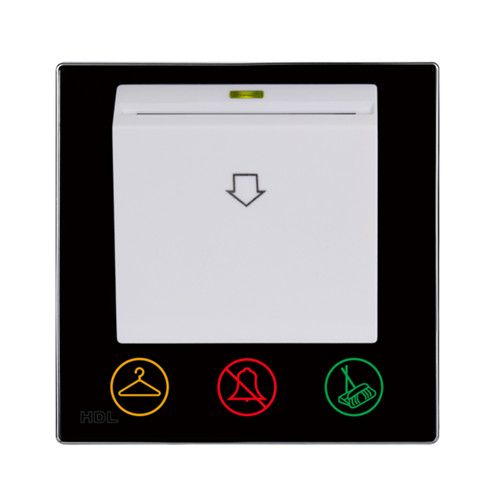

RF Card Reader & Master Control EU with 3 Service Buttons
Model: HDL-MPTC03.48
RF Card Reader & Master Control EU(US) with 3 Service Buttons is for energy control and room information of hotel guest room. It has built-in MIFARE RF card reader. Guest card, service card, cleaner card, etc. can be recognized by this panel, and it includes 3 touch buttons alsi. Customer can select US or EU standard panel accouding to their requirements.
RF Card Reader & Master Control EU(US) with 3 Service Buttons is for energy control and room information of hotel guest room.
It has built-in MIFARE RF card reader. Guest card, service card, cleaner card, etc. can be recognized by this panel, and it includes 3 touch buttons alsi. Customer can select US or EU standard panel accouding to their requirements.
■ Master card for energy & power management.
■ 3 touch buttons, sensitivity can be adjusted
■ Button color RGB can be adjusted
■ The touch button can be used as the panel button, or work with HDL touch door bell panel, can be displayed DND, Clean, Wait.
■ Control of mechanical switch can be configured when inserting or taking off the card. Up to 49 targets can be controlled by the switch. Maximum 99 targets can be controlled by other button modes
■ Support online update via HDL Buspro Setup Tool
Basic Parameters
Working voltage 12~30V DC
Working current 60mA/24V DC
Supported card type MIFARE ONE S50 13.56MHz
Communication HDL Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 86×86×20.4 (mm) (EU)
Net weight 107g
Housing material Glass, ABS
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
