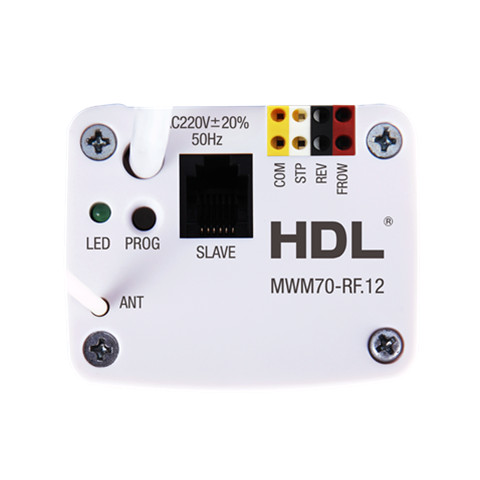

Wireless Curtain Control Motor
Model: HDL-MWM70-RF.12
HDL-MWM70-RF.12 is the wireless curtain motor, which is configured by HDL-MCIP-RF02.10. It can control the curtain to open, close, stop and percentage control. And it has over load protection and over heat protection


■ Drag mode: No action, Long drag, short drag.
■ Percentage control.
■ Communication: wireless.
■ Supports online upgrading.
■ Supports easy programming.
■ Built-in new generation clutch, precise planetary. And noise level is 40dB.
■ Dry contact switch, it can control the curtain to open,close, stop.
■ Suitable for all small to medium-scale curtain applications,linear and arched, one-and two-side opening.
Rated voltage AC220V 50Hz
Voltage range AC220V±20% 50HZ
Slave interface 6P internet port
Rated power 70W
Rated torque 1.0Nm
Rated speed 112rpm
Rail belt speed 16cm/s
Communication Wireless
Wireless transmission power +10dbm
Wireless sensitivity -90dbm
Indoor communication distance 30m(barrier free)
RSSI Received Signal Strength
Indication
>-80dbm
Factory frequency
Band, PSK (Suggestion: your setting should not be same as the factory setting)
Environmental Conditions:
Working temperature -5℃~45℃
Working relative humidity <95%<>
Storage temperature -20℃~+60℃
Storage relative humidity <93%<>
Approved:
CE
RoHS
Product Information:
Dimensions 284×70×50(mm)
Net weight 1352g
Housing material ABS, aluminum
Installation Wall hanging
Protection rating IP41
Frequency allocation:
(China) WPAN 780MHz to 786MHz
(Europe) SRD 864MHz to 870MHz
(North America) 904MHz to 928 MHz
Default PSK HDL-SecurityKey0
