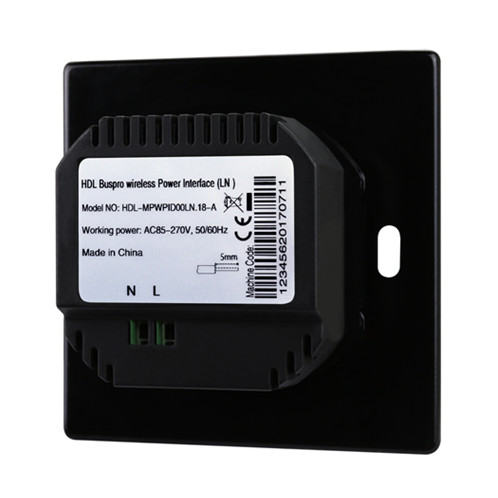

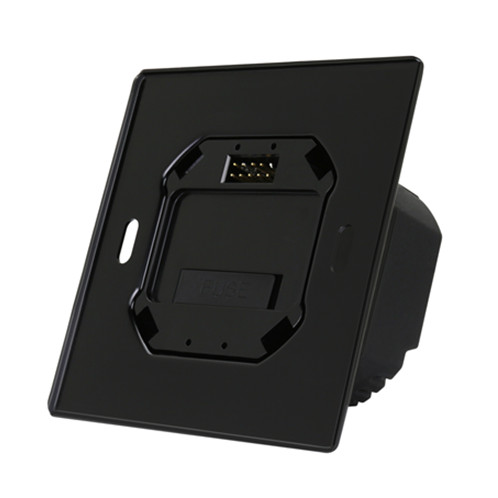

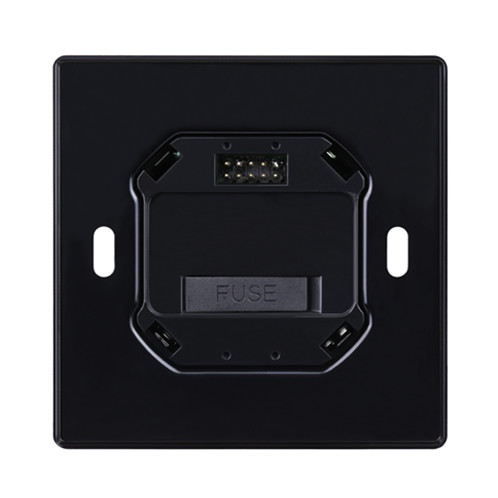

Wireless Power Interface EU (L+N Type)
Model: MPWPID00LN.18-A
Wireless Power Interface EU (L+N Type) is used in conjunction with the wireless panel and provides working voltage for wireless panel. The power interface is divided into two types: European standard and American standard.
Wireless Power Interface EU (L+N Type) is used in conjunction with the wireless panel and provides working voltage for wireless panel. The power interface is divided into two types: European standard and American standard.
■ Provides DC 5V working voltage for wireless panels
■ Overheat protection for power interface chip
■ Overheat protection for power interface chip
Basic Parameters
Input voltage AC100-240V(50/60Hz)
Maximum output current 100mA / 5V DC
Fuse 2A, aR type
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
80×80×39(mm)(EU)
Net weight
128g(EU)
Housing material Flame-retardant nylon, iron
Installation Wall box
Protection rating
(Compliant with EN 60529) IP20
Fire and neutral wire 2.5mm2 copper cable
Input voltage AC100-240V(50/60Hz)
Maximum output current 100mA / 5V DC
Fuse 2A, aR type
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
80×80×39(mm)(EU)
Net weight
128g(EU)
Housing material Flame-retardant nylon, iron
Installation Wall box
Protection rating
(Compliant with EN 60529) IP20
Fire and neutral wire 2.5mm2 copper cable
