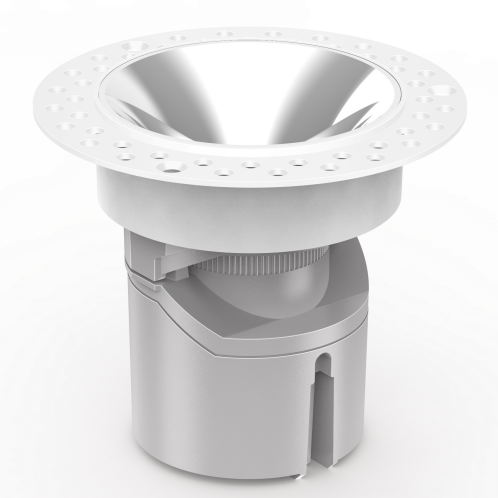

12W Pre-embedded Spotlight
Model: HD-YM3075
It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
• Round adjustable Pre-embedded Spotlight (75 Series) made of die-cast aluminum with white powder-coating finish (RAL 9016) and white/black/chrome reflector;
• Work with DALI/0-10V/TRIAC dimming driver or built-in ON/OFF driver;
• LED 12W;
• Measurement Ø103mm; ceiling cutout of Ø75mm with a narrow mounting trim;
• High color rendering at an index of CRI90;
• After a lifetime of 50000h min. 80% of the luminous flux;
• Adjustable CCT light: 24°/36° beam angles; fixed CCT light: 15°/24°/36°/50° beam angles;
• Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1(UGR<13);
• Degree of housing protection according to DIN EN 60529 (IP20).
LED
• 2800K-6000K
• CRI>90
• 50000h@L80B10
• SDCM: 3
Optics
• Beam angle: 24°/36°
• UGR <13
• Honeycomb mesh
Electric
• LED Driver: None/ON-OFF driver
• LED Power: 12W
• 36V
• 300mA
Dimensions
• Measurement: Ø103mm
• Cutout: Ø75mm
• Height: 91.5mm
• Pivot: max. 30°
• Rotation: 355°
