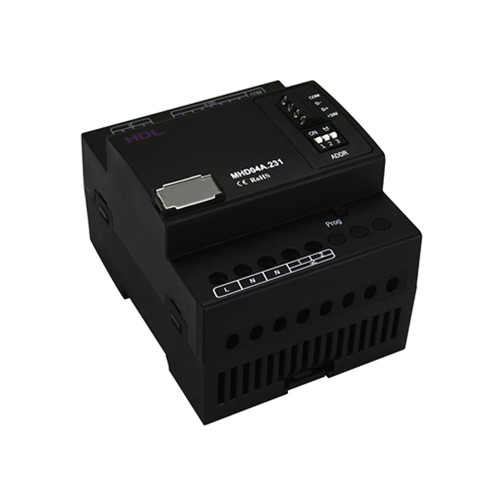

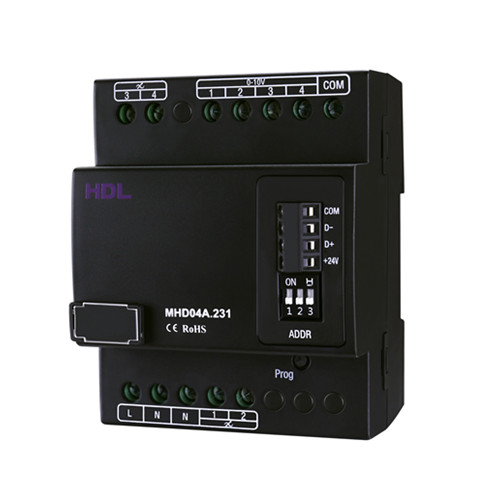

4CH Universal Dimming Actuator
Model: MHD04A.231
4CH Universal Dimming Actuator is a multifunction control module, which enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output. In conjunction with HDL Hotel Room Management System, the dimming actuator can control lights (including incandescent light, dimmable LED light, 0-10V dimmable fluorescent light, low-voltage halogen light, etc.).
4CH Universal Dimming Actuator is a multifunction control module, which enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output. In conjunction with HDL Hotel Room Management System, the dimming actuator can control lights (including incandescent light, dimmable LED light, 0-10V dimmable fluorescent light, low-voltage halogen light, etc.).
■ The dimming actuator enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output. In conjunction with MOSFET dimming mode, the 0-10V dimming mode enables dimming control of the 0-10V dimming devices. And the MOSFET dimming mode enables trailing dimming control of the dimmable lights (including incandescent light, dimmable LED light, low-voltage halogen light, etc.)
■ Isolated 0-10V output.
■ The MOSFET dimming channels support short circuit protection and over heat protection.
■ The ID address of the dimming actuator supports simple configuration via dial code control, or full configuration via HDL Hotel Room Management System.
■ Inner Buspro communication is adopted. In conjunction with HDL Hotel Management System, the dimming actuator can work in some more complicated scenes as a channel expansion module of HDL hotel host.
Basic Parameters
Working voltage 15~30V DC
Working current 55mA/24V DC
Input voltage AC100-240V(50/60Hz)
Output channel
Enables the switch control
between four channels of 0-10V
dimming output and four channels
of MOSFET dimming output.
0-10V output 5mA/CH
MOSFET output channel 0.5A/CH
MOSFET dimming mode Trailing edge
MOSFET dimming curves Linear
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 234g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
