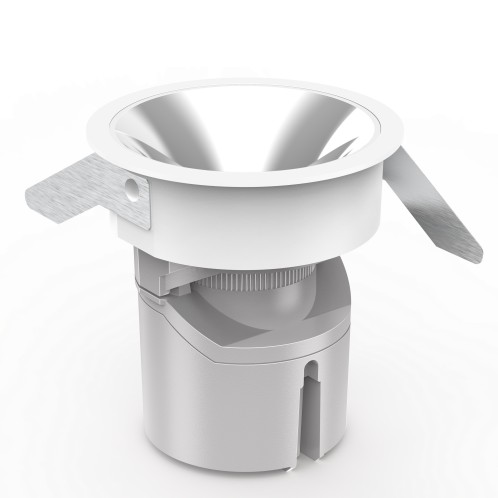

12W Recessed Spotlight

12W Recessed Spotlight

Model: HD-TH3075

It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.

It is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.

• Round adjustable Recessed Spotlight (75 Series, Low) made of die-cast aluminum with white powder-coating finish (RAL 9016) and white/black/chrome reflector; • Work with DALI/0-10V/TRIAC dimming driver or built-in ON/OFF driver; • LED 12W; • Measurement Ø84mm; ceiling cutout of Ø75mm with a narrow mounting trim; • High color rendering at an index of CRI90; • After a lifetime of 50000h min. 80% of the luminous flux; • Adjustable CCT light: 24°/36° beam angles; fixed CCT light: 15°/24°/36°/50° beam angles; • Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1(UGR<13); • Degree of housing protection according to DIN EN 60529 (IP20).
LED

• 2800K-6000K

• CRI>90

• 50000h@L80B10

• SDCM: 3

Optics

• Beam angle: 24°/36°

• UGR <13

• Honeycomb mesh

Electric

• LED Driver: None/ON-OFF driver

• LED Power: 12W

• 36V

• 300mA

Dimensions

• Measurement: Ø84mm

• Cutout: Ø75mm

• Height: 91.5mm

• Pivot: max. 30°

• Rotation: 355°
