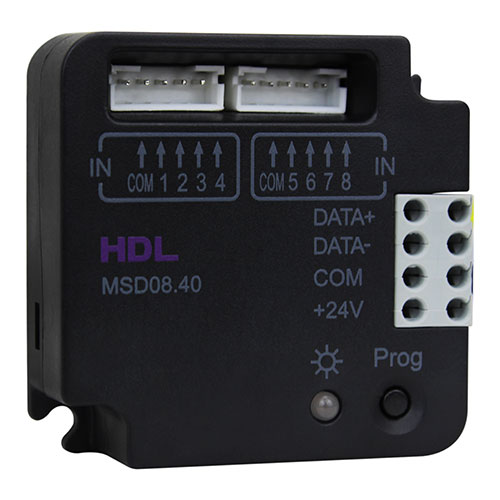

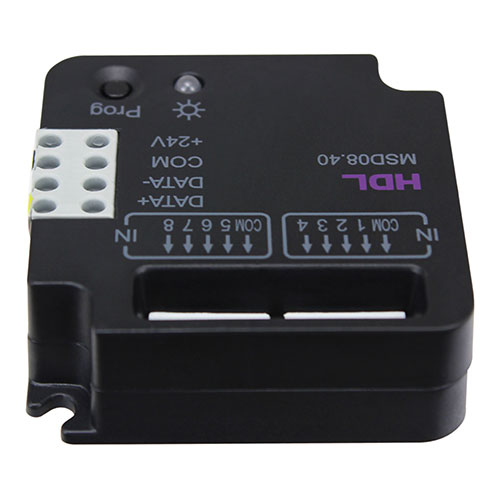

8-Zone Dry Contact Module

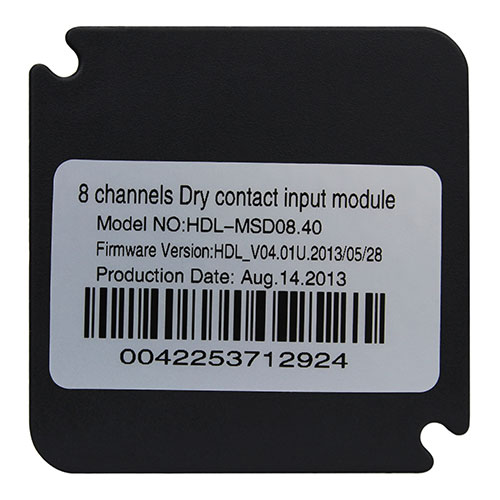

Model: HDL-MSD08.40
8-Zone Dry Contact Module supports 8-channel dry contact input with vandal-proof function.
8-Zone Dry Contact Module supports 8-channel dry contact input with vandal-proof function.
■ 8-channel dry contact input with vandal-proof function.
■ Supported switch type: Mechanical switch, Single on, Single off, Single on/off, Combination on, Combination off, Combination on/off, Multi-function, Parallel switch.
■ Supported switch mode: Switch mode, Dim up/down, Dim up or Dim down
■ Control target type: Scene, Sequence, Universal switch, Single channel lighting control, Broadcast scene, Broadcast channel, Curtain Control, Panel control, GPRS control, Security module, TT player etc.
■ Vandal-proof (One parallel contacted 1kΩ resister required)
■ Security function (Security module required)
■ Supports online update via HDL Buspro Setup Tool
Basic Parameters
Working voltage 12~30V DC
Working current 15mA/24V DC
Communication HDL Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 45mm×45mm×16mm
Net weight 45g
Housing material ABS
Installation
Fix with screws
Protection rating (Compliant with EN 60529) IP20
