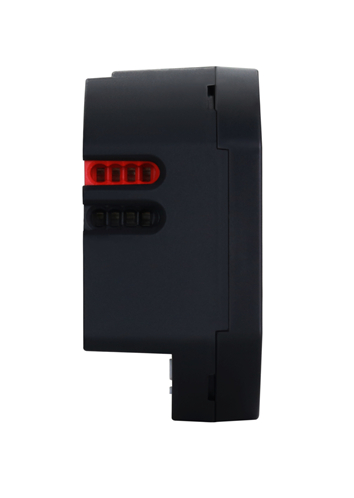

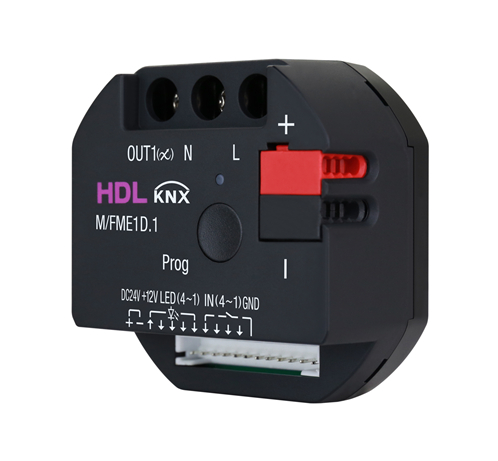

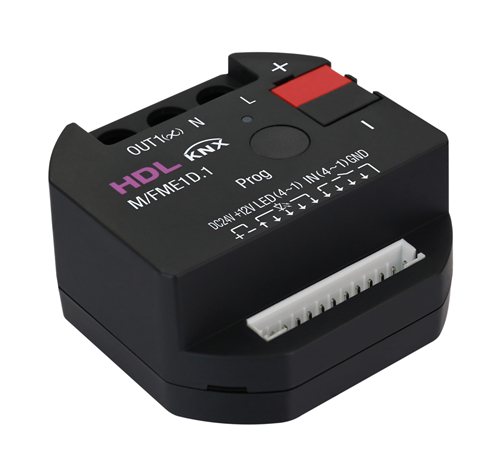

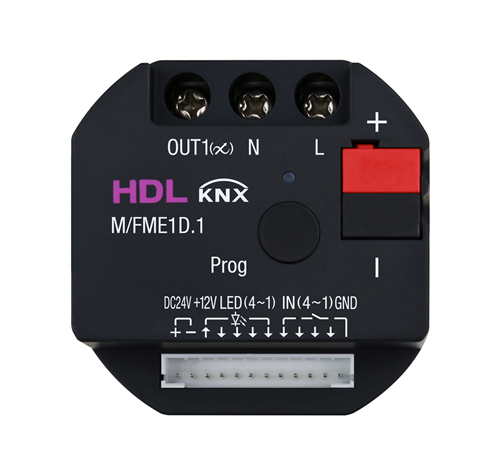

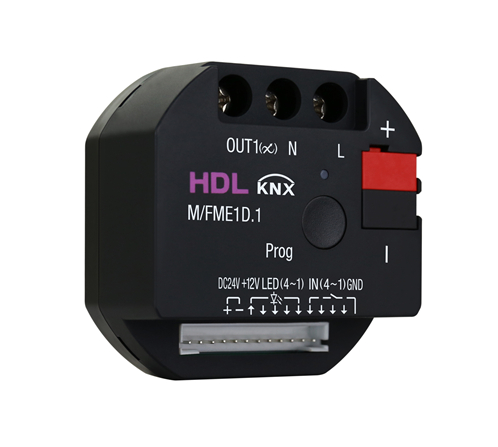

KNX 1CH 1A Flush-mounted Dimming Actuator (EU)
Model: M/FME1D.1
KNX 1CH 1A Flush- mounted Dimming Actuator (EU) is an actuator with 1CH 1A dimming control channel, 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel,the actuator enables smart dimming control of home lighting.
KNX 1CH 1A Flush- mounted Dimming Actuator (EU) is an actuator with 1CH 1A dimming control channel, 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel,the actuator enables smart dimming control of home lighting.
■ Supports 1CH 1A relay dimming control channel
■ 4 dry contact input channels and 4 LED output channels
■ Programming buttons and programming indicators available
■ Short press the programming button to enter the programming mode, the red indicator is always on in the programming mode; long press the button to control all the dimming channels on/off.
■ With scene control, staircase light control, dimming control functions
Basic Parameters
Working voltage ：21~30V DC
Working current ：25mA/30V DC
Auxiliary voltage ：20~30V DC
Auxiliary current：25mA/24V DC
Dimming channel ：1CH, 1A/CH (AC100-240V, 50/60Hz)
Dry contact：4CH dry contact input
LED：4CH LED output, 12mA/CH
Communication ：KNX
Cable diameter of KNX terminal：0.6-0.8mm
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions：46.8mm×46.8mm×23mm
Net weight：37g
Housing material：Flame retardant PC
Installation：Wall box
Protection rating (Compliant with EN 60529) ：IP20
