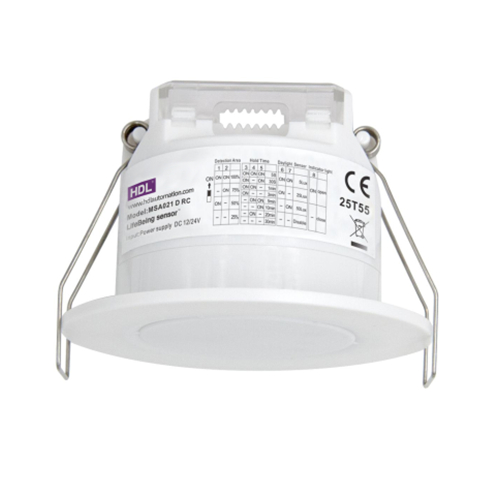

LifeBeing sensor
Model: MSA021D RC
The sensor detects human walking, slight motion(such as body movement, turn up head and others minor movements) and breathing to realize the detection of human existence in non-sleep state.
The sensor detects human walking, slight motion(such as body movement, turn up head and others minor movements) and breathing to realize the detection of human existence in non-sleep state.
1) Adopt LifeBeing detected technology, which can detect movement, slight motion and breathing signal.
2) 12/24Vdc input, and dry contact output.
3) Built-in daylight sensor for energy saving.
4) Support flush mounting installation.
5) All parameters can be set via DIP switch & remote control.
6) Low impedance antenna for environmental adaptation
7) 5 years warranty.
Rated voltage 12V-24V DC±0.5V
Stand-by power 0.5W
Working Mode dry contact, normal open
Load Capacity Resistive (36V DC ,50mA Max)
Operating frequency 5.8 GHz ±75 MHz, ISM band.
Transmitting power 0.3mW Max.
Hold time 5S/30S/1Min/3Min/5Min/10Min/20Min/30Min
Detection Area 100%/75%/50%/25%
Daylight Sensor 5lux/25lux/50lux/Disable
Detection range (radius) Movement: 3-4m (Speed: 0.3m/s) Slight motion: 3-4m Breathing: 2-3m
Mounting height 2.5-4m
Detecting Angle 120
