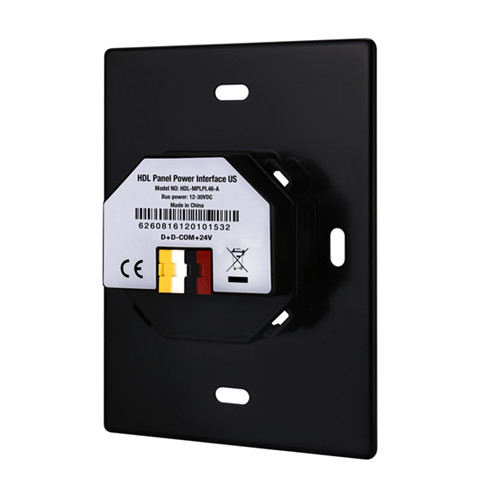

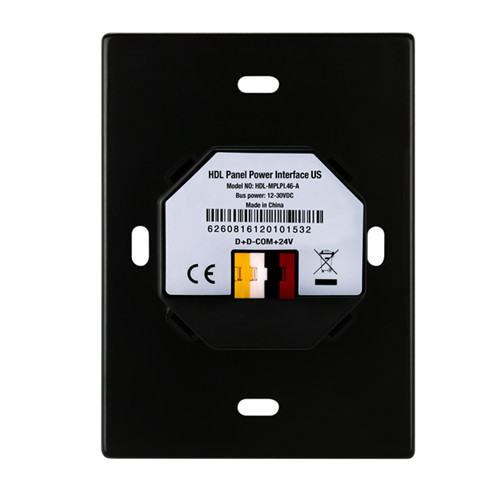

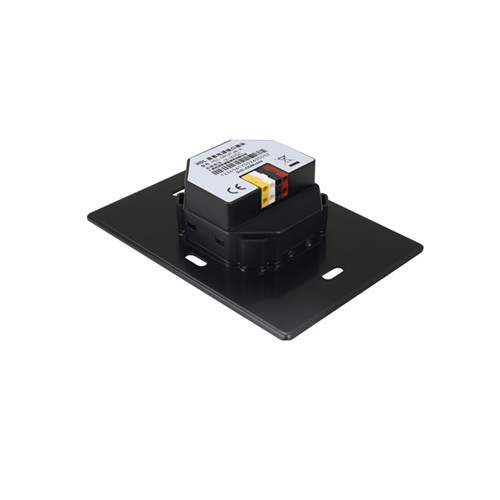

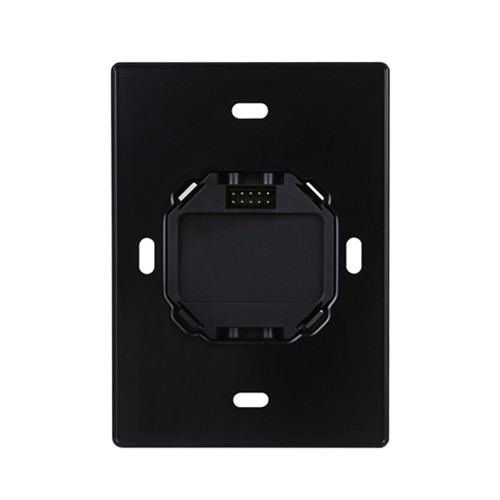

Panel Power Interface US
Model: HDL-MPLPI.46-A
Panel Power Interface US provides DC power and communicates with panel switch, and supports different US types of panels and sensors.
Panel Power Interface US provides DC power and communicates with panel switch, and supports different US types of panels and sensors.
■ Provides DC power and communicates with panel switch and sensor
■ HDL Buspro interface supported (CAT5E or dedicated HDL Buspro cable required)
Basic Parameters
Working voltage 12~30V DC
Communication HDL Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
80×110.5×28.5(mm) (US)
Net weight
EU: 58g
US: 77g
Housing material Steel, ABS
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
