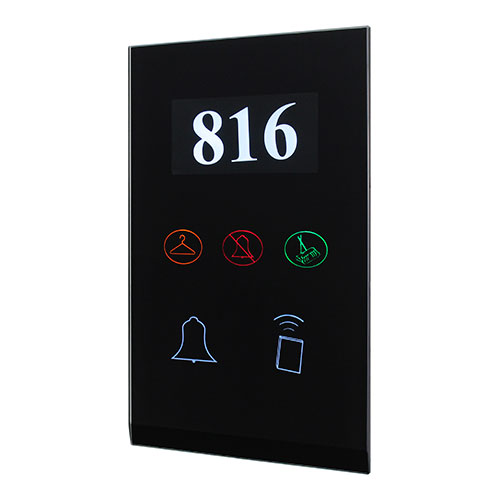

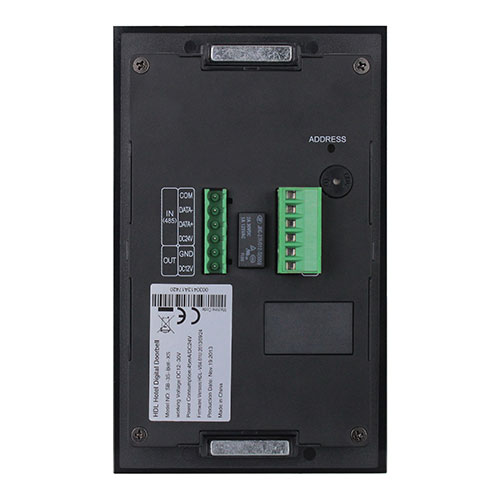

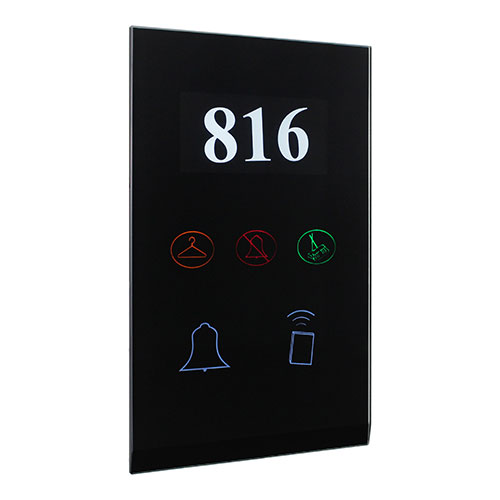

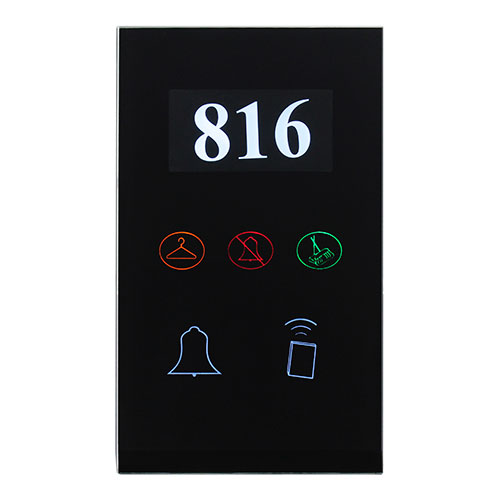

RF Intelligent Door Bell and Access Reader
Model: HDL-MHBRF.1010
RF Intelligent Door Bell and Access Reader is a door bell touch panel which is installed outside the room by the door. It can control the panel to indicate your requirements via the door bell panel, such as Laundry, DND and Clean Room.
RF Intelligent Door Bell and Access Reader is a door bell touch panel which is installed outside the room by the door. It can control the panel to indicate your requirements via the door bell panel, such as Laundry, DND and Clean Room.
■ Shows room numbers, indicates the information of Laundry, DND and Clean Room.
■ 2 dry contacts.
■ Door bell.
■ Open the Door by RF card & history record function.
■ Support HDL Buspro online update.
Basic Parameters
Working voltage 12~30V DC
Working current 45mA/24V DC
Communication HDL Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 105×170×35 (mm)
Net weight 361g
Housing material Glass
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
